Home > Stainless Steel > Stainless Steel 420 Tubing
Liam Pipes and Tubes is a well-respected manufacturer and supplier of Stainless Steel 420 Tubing based in Houston, USA. We provide high-strength, corrosion-resistant tubing solutions tailored for a variety of industrial applications. Stainless Steel 420 is a martensitic stainless steel celebrated for its impressive hardness, wear resistance, and decent corrosion resistance after undergoing heat treatment. At Liam Pipes and Tubes, we take pride in producing 420 tubing that adheres to rigorous quality standards, ensuring it delivers durability, precise dimensions, and dependable performance. Our 420 tubing finds its way into numerous sectors, including automotive, aerospace, medical, and manufacturing, where strength and surface finish are vital for success.
Stainless Steel 420 Tubing consists of Chromium (12–14%), Carbon (0.15–0.40%), along with trace amounts of Manganese, Silicon, Phosphorus, and Sulfur. This martensitic alloy achieves remarkable hardness and strength post-heat treatment. Its mechanical properties boast a tensile strength ranging from 700 to 850 MPa, a yield strength of about 345 MPa, and an elongation of roughly 15%. When fully hardened, it can reach hardness levels of up to 50 HRC. While its corrosion resistance is moderate, it performs admirably in mild environments, making it a great choice for wear-resistant and mechanically demanding applications.
Item | Stainless Steel 420 Tube |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |

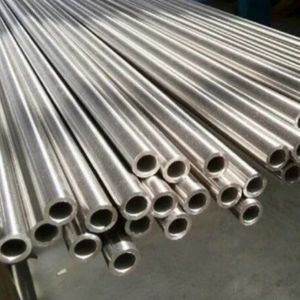

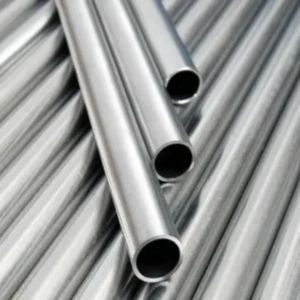

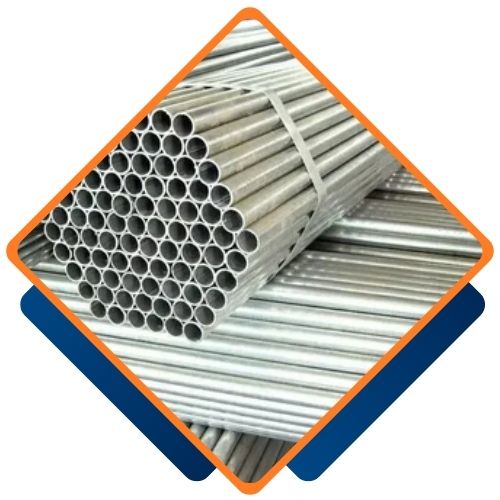

Type | Seamless / ERW / Welded / Fabricated / CDW |
Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

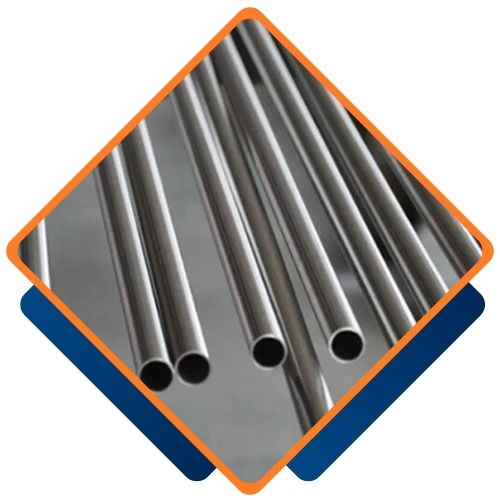

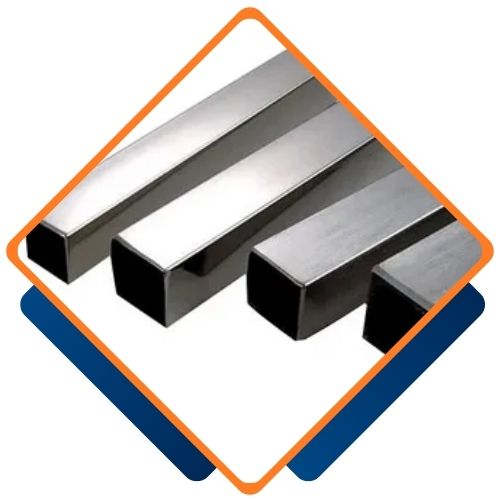

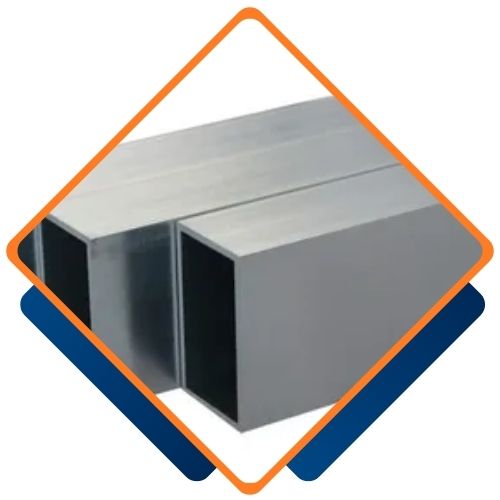

Form | 420 Round Tubing, 420 Square Tubes, 420 Rectangular Tube, “U” Shape 420 Tubing, 420 Hydraulic Tubes |
Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
Dimension | All Tubes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | |
|---|---|---|---|---|---|---|---|
| 420 | Min. max. | 0.15 – | – 1 | – 1 | – 0.040 | – 0.03 | 12.0 14.0 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max | – |
| 204 | 1600 | 1360 | 12 | 444 | 20 |
| 316 | 1580 | 1365 | 14 | 444 | 19 |
| 427 | 1620 | 1420 | 10 | 461 | # |
| 538 | 1305 | 1095 | 15 | 375 | # |
| 593 | 1035 | 810 | 18 | 302 | 22 |
| 650 | 895 | 680 | 20 | 262 | 42 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 420 Tubing from Liam Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel 420 Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 420 Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
Stainless Steel 420 Tubing is extensively utilized in industries that demand high hardness, strength, and a sleek, polished finish. You’ll commonly find it in surgical and dental instruments, cutlery, valve components, pump shafts, and molds. In the automotive and aerospace fields, 420 tubing is essential for structural and precision-machined parts. Its wear resistance and ability to retain edges make it perfect for tools, dies, and measuring instruments. Additionally, it plays a role in the food processing industry and certain marine applications, where moderate corrosion resistance and high durability are crucial. It’s particularly suited for components that face friction and light chemical exposure.
