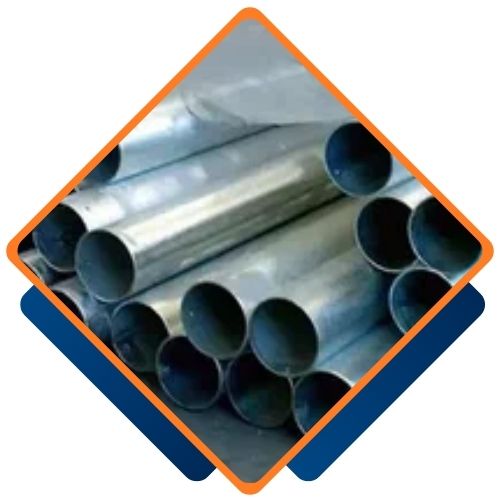

Liam Pipes and Tubes, located in Houston, USA, has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 304H tubing. With a focus on precision engineering, they produce both seamless and welded tubes that meet strict industrial standards. By utilizing cutting-edge fabrication techniques and thorough testing facilities, Liam guarantees that each tube offers outstanding performance and durability. Their Houston facility enables quick delivery across North America, supported by expert knowledge and ISO-compliant quality assurance. Industries like petrochemical, energy, and pressure vessels trust Liam’s 304H tubing for essential applications that require heat resistance and structural integrity.
Stainless Steel 304H is an austenitic alloy made up of roughly 18–20% chromium, 8–11% nickel, and 0.04–0.10% carbon, along with small amounts of manganese, silicon, and phosphorus. The higher carbon content compared to 304/304L boosts its strength at high temperatures and improves creep resistance. Typical mechanical properties feature a tensile strength ranging from 515–620 MPa and a yield strength around 205 MPa, along with good elongation and toughness. Its metallurgical makeup ensures stability under thermal stress and resistance to oxidation, making it perfect for challenging environments.
Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
SS 304H Pipe Thickness Range: 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
W.T: SCH5S, SCH10S, SCH40S, SCH80S, SCH160S, etc. (0.5-12mm) Or non-regular size to be tailored as required
Type: SS 304H Seamless Pipes | SS 304H ERW Pipes | SS 304H Welded Pipes | SS 304H Fabricated Pipes | SS 304H CDW Tubes, LSAW Pipes / Seam-welded / Redrawn
Form: SS 304H Round Pipes/ Tubes, SS 304H Square Pipes/ Tubes, SS 304H Rectangular Pipe/ Tubes, SS 304H Coiled Tubes, SS 304H “U” Shape, SS 304H Pan Cake Coils, SS 304H Hydraulic Tubes
Length: Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded
End Protection: Plastic Caps | Outside Finish: 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Inspection, Test Reports: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing: Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials: Sizes and Specifications other than above can be manufactured on request
ASTM A312 304H: Seamless and straight-seam welded austenitic pipe intended for high temperature and general corrosive service. Filler metal not permitted during welding.
ASTM A358 304H: Electric fusion welded austenitic pipe for corrosive and/or high temperature service. Typically only pipe up to 8 inch is produced to this specification. Addition of filler metal is permitted during welding.
ASTM A790 304H: Seamless and straight-seam welded ferritic/austenitic (duplex) pipe intended for general corrosive service, with a particular emphasis on resistance to stress corrosion cracking.
ASTM A409 304H: Straight-seam or spiral-seam electric fusion welded large diameter austenitic light-wall pipe in sizes 14” to 30” with walls Sch5S and Sch 10S for corrosive and/or high
ASTM A376 304H: Seamless austenitic pipe for high temperature applications.
ASTM A813 304H: Single-seam, single- or double- welded austenitic pipe for high temperature and general corrosive applications.
ASTM A814 304H: Cold-worked welded austenitic pipe for high temperature and general corrosive service.
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 304H Tubing from Liam Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Liam Pipes and Tubes, a leading supplier of Stainless Steel 304H Tubing in Houston , USA, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Liam Pipes and Tubes, we provide custom sizes of Stainless Steel 304H Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@liampipes.us
Stainless Steel 304H tubing is extensively used in industries where high-temperature resilience and corrosion resistance are essential. It finds common applications in power generation, boiler systems, furnace components, and heat exchangers, thanks to its impressive creep strength at temperatures reaching up to 800 °C. Petrochemical and chemical processing plants rely on 304H for piping, reactors, and pressure vessel internals that face harsh chemicals and varying temperatures. Additionally, it performs well in aerospace, automotive exhaust systems, and structural frameworks, providing long-lasting performance under both thermal and mechanical stress.
