Home > Stainless Steel > Stainless Steel 316L Tubing
Liam Pipes and Tubes stands out as a top-notch manufacturer and supplier of Stainless Steel 316L Tubing right here in Houston, USA. We’re known for providing high-quality, corrosion-resistant tubing solutions that really make a difference. Stainless Steel 316L is a low-carbon version of 316 stainless steel, which means it has better resistance to sensitization and intergranular corrosion, especially after welding. At Liam Pipes and Tubes, we take pride in producing our 316L tubing to meet strict industry standards, ensuring it’s durable, weldable, and performs exceptionally well. We cater to a variety of industries, including chemical processing, pharmaceuticals, food and beverage, and marine applications, where top-notch corrosion resistance and structural integrity are crucial for long-lasting reliability.
Our Stainless Steel 316L Tubing is made up of Chromium (16–18%), Nickel (10–14%), Molybdenum (2–3%), and a very low Carbon content (≤0.03%), along with Manganese, Silicon, and trace elements. This unique blend boosts its resistance to pitting, crevice corrosion, and stress corrosion cracking. In terms of mechanical properties, it boasts a tensile strength of about 485 MPa, a yield strength of around 170 MPa, and an elongation of nearly 40%. The low carbon content helps prevent carbide precipitation during welding, which keeps its corrosion resistance and mechanical stability intact, even in tough environments.
| Tube Range | 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG |
| Outer Diameter | 3.00 mm – 219.10 mm |
| Wall Thickness | 0.40 mm – 12.70 mm |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Length | Upto 30 meters, Custom Cut Lengths |
| Specifications | ASTM A213 / ASTM SA213 |

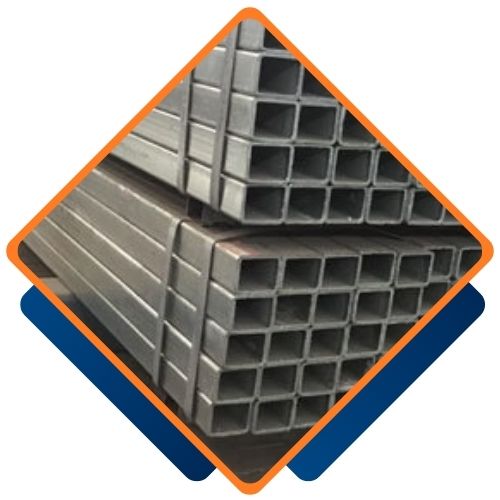

| Types | Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes |
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316L | S31603 | 1.4404 / 1.4435 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS | 316L |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316L |
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316L Tubing from Liam Pipes and Tubes ensures high quality and durability, as these tubing offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel 316L Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316L | S31603 | S31603 | – | 1.4404 | X5CrNiMo17-12-2 | 2348 | SUS 316L |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Yes, we offer custom sizes for Stainless Steel 316L Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.

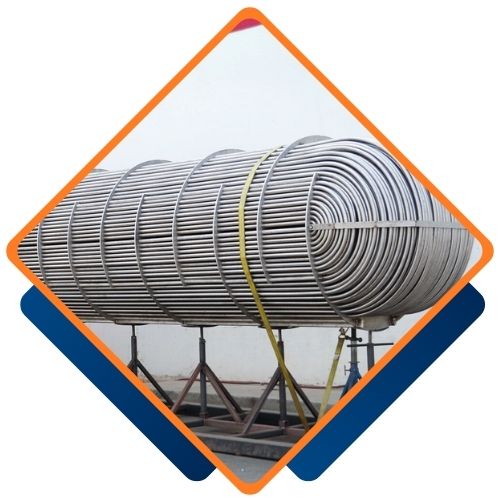

You’ll find Stainless Steel 316L Tubing widely used in applications that require outstanding corrosion resistance and hygiene. It’s perfect for chemical and petrochemical processing, pharmaceutical manufacturing, and the food and beverage sectors. This tubing is often found in heat exchangers, condensers, piping systems, and marine settings, thanks to its impressive resistance to chloride corrosion and biofouling. It’s also utilized in wastewater treatment, architectural structures, and medical devices where cleanliness and durability are key. With its excellent weldability and resistance to intergranular corrosion, 316L tubing is the go-to choice for welded structures that face corrosive media and varying temperatures.
