Home > Stainless Steel > Stainless Steel 904L Tubing
Liam Pipes and Tubes is your go-to manufacturer and supplier of top-notch Stainless Steel 904L Tubing right here in Houston, USA. Renowned for its outstanding durability and resistance to corrosion, our 904L tubing is designed to meet international quality standards. We cater to a variety of industries, including oil & gas, petrochemical, and marine, ensuring that our products perform reliably even in the toughest environments. With a strong commitment to excellence, competitive pricing, and prompt delivery, Liam Pipes and Tubes has established itself as a trusted source for Stainless Steel 904L Tubing across the United States and beyond.
When it comes to the composition and mechanical properties of Stainless Steel 904L Tubing, this high-alloy austenitic stainless steel stands out for its remarkable corrosion resistance. It contains Chromium (19–23%), Nickel (23–28%), Molybdenum (4–5%), Copper (1–2%), and a low Carbon content (≤0.02%). This unique combination boosts its resistance to strong reducing acids and chloride attacks. In terms of mechanical properties, it boasts a minimum tensile strength of 490 MPa, a yield strength of at least 220 MPa, and an elongation of 35% (min). With a hardness of around 70 HRB, 904L tubing is perfect for demanding structural and corrosive applications.
| Marking | All Stainless Steel 904L tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
|---|---|
| 904L Stainless Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| SS 904L tube Length | Single Random, Double Random, Standard & Cut length |

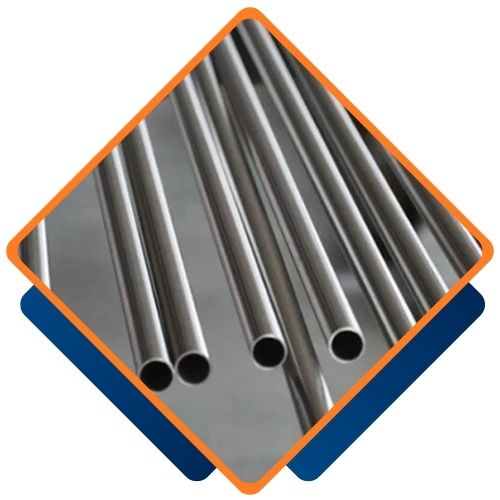

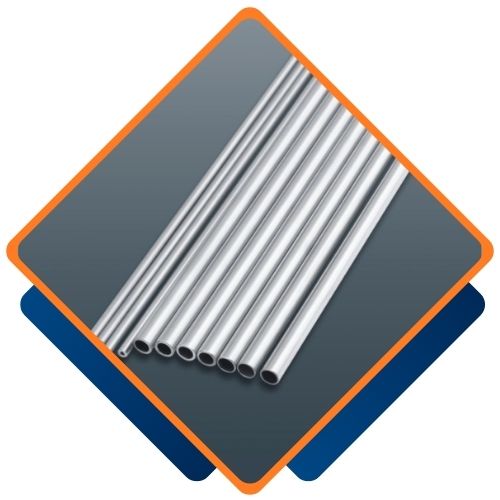

| 904L Stainless Steel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Stainless Steel 904L Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

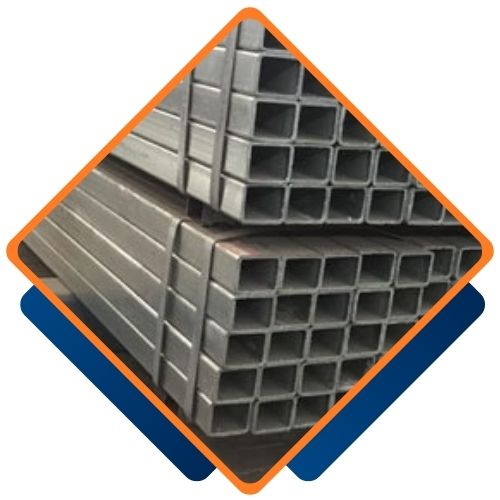

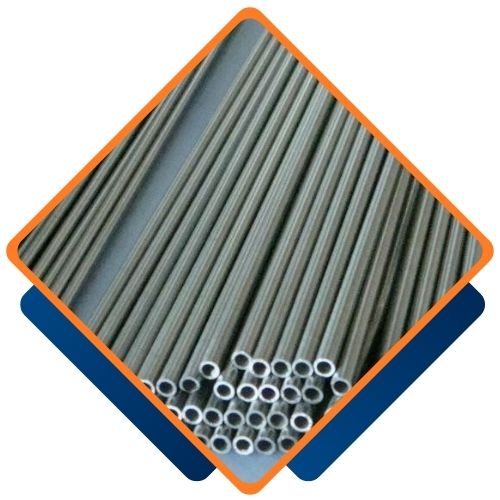

| 904L Stainless Steel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| 904L Stainless Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| End | Plain End, Beveled End, Treaded |

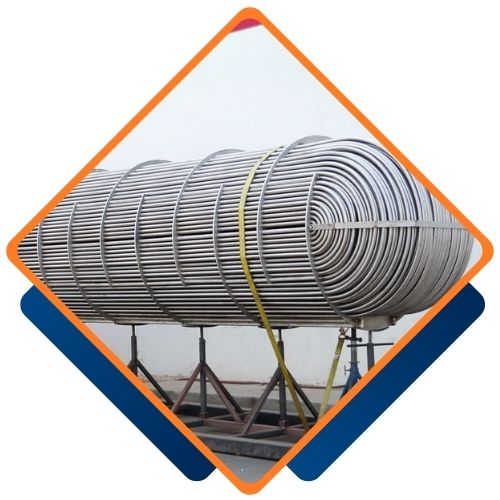

| Specialize in | 904L Stainless Steel Capillary Tube & Other Odd Size 904L Stainless Steel Heat Exchanger & Condenser Tubes |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| 904L Stainless Steel Tube Standards | ASTM B/ASME SB674 / SB677 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| 904L Stainless Steel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | Cu | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.0-5.0 | 23.0 | 1.0 |
| max. | 0.20 | 2.0 | 1.0 | 0.045 | 0.035 | 23.0 | 28.0 | 2.0 | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 904L Tubing from Liam Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel 904L Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 904L Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
Stainless Steel 904L Tubing is extensively used in highly corrosive settings thanks to its exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. You’ll find it in heat exchangers, chemical processing equipment, offshore oil and gas platforms, pulp and paper processing, and seawater handling systems. It’s also a key player in power generation, pharmaceutical plants, and flue gas cleaning systems. With its excellent weldability, strength, and ability to endure harsh chemicals, 904L tubing is a dependable choice for both industrial and architectural applications that require long-lasting durability.
