Home > Stainless Steel > Stainless Steel 317L Tubing
Liam Pipes and Tubes, based in Houston, USA, stands out as a top manufacturer and supplier of Stainless Steel 317L Tubing, delivering high-quality tubing solutions designed for tough and corrosive environments. This 317L grade is a low-carbon, high-molybdenum austenitic stainless steel that excels in resisting chemical attacks, pitting, and crevice corrosion, especially in acidic and chloride-heavy settings. Liam’s 317L tubing is crafted to comply with ASTM A213 and A269 standards, guaranteeing exceptional quality, strength, and durability. It’s a go-to choice in industries like chemical processing, marine, pulp and paper, and pharmaceuticals, ensuring a long lifespan and impressive corrosion resistance even in harsh conditions.
Stainless Steel 317L Tubing is made up of chromium (18–20%), nickel (11–15%), molybdenum (3–4%), and a low carbon content (≤0.03%), which together provide outstanding corrosion resistance, particularly against sulfuric, acetic, formic, and citric acids. The tubing boasts a tensile strength ranging from 515 to 760 MPa, a yield strength of about 205 MPa, and excellent elongation and ductility. Its low carbon content enhances weldability and reduces carbide precipitation during welding. With its superior resistance to pitting and crevice corrosion, 317L tubing is perfect for high-performance applications in both aggressive chemical and marine settings.
| Tube Standard | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Tube Dimension | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Tube Sizes | 1 / 2″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Tube Manufacturing Process | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Stainless Steel Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Tube Length | Single Random, Double Random, Standard & Cut length |
| Tube End Types | Plain Ends (PE), Threaded Ends (TE), Bevelled Ends (BW), Grooved Mechanical Joints or Grooved Ends, TBE (Treaded Both Ends) |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317L | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317L | 515 | 205 | 35 | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 317L Tubing from Liam Pipes and Tubes ensures high quality and durability, as these tubing offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel 317L Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Dimensions | Wall | Weight per | Dimensions | Wall | Weight per | |
|---|---|---|---|---|---|---|
| (mm) | (mm) | metre (kg) | (mm) | (mm) | metre (kg) | |
| 12.7 x 12.7 | 1.20 | 0.44 | 40 x40 | 1.20 | 1.49 | |
| 12.7 x 12.7 | 1.50 | 0.55 | 40 x40 | 1.50 | 1.85 | |
| 15 x 15 | 1.20 | 0.53 | 40 x40 | 2.00 | 2.45 | |
| 15 x 15 | 1.50 | 0.65 | 40 x40 | 3.00 | 3.75 | |
| 20 x 20 | 1.20 | 0.71 | 50 x50 | 1.50 | 2.32 | |
| 20 x 20 | 1.50 | 0.88 | 50 x50 | 2.00 | 3.08 | |
| 20 x 20 | 2.00 | 1.19 | 50 x50 | 3.00 | 4.65 | |
| 25 x 25 | 1.20 | 0.92 | 60 x60 | 2.00 | 3.71 | |
| 25 x 25 | 1.50 | 1.14 | 60 x60 | 3.00 | 5.49 | |
| 25 x 25 | 2.00 | 1.49 | 70 x70 | 3.00 | 6.53 | |
| 25 x 25 | 3.00 | 2.20 | 80 x80 | 2.00 | 4.98 | |
| 30 x 30 | 1.20 | 1.10 | 80 x80 | 3.00 | 7.53 | |
| 30 x 30 | 1.50 | 1.37 | 100 x 100 | 2.00 | 6.40 | |
| 30 x 30 | 2.00 | 1.84 | 100 x 100 | 3.00 | 9.53 | |
| 30 x 30 | 3.00 | 2.72 | ||||
OD Size Inches | Tolerances, Inches | ||
OD, Inches | Wall | Cut Length (a), In. | |
Less than 1 | ±0.004 | All Sizes ± 10% | +1/8–0 |
1 to 1-1/2 | ±0.006 | ||
Over 1-1/2 to 2 | ±0.008 | ||
Over 2 to 2-1/2 | ±0.010 | +3/16–0 | |
Over 2-1/2 to 3 | ±0.012 | ||
Over 3 to 4 | ±0.015 | ||
Over 4 to 5 | +0.015 – 0.025 | ||
Yes, we offer custom sizes for Stainless Steel 317L Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.

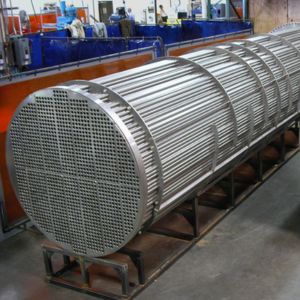

Stainless Steel 317L Tubing finds extensive use in chemical and petrochemical processing, pulp and paper facilities, marine applications, and pollution control systems. Thanks to its high molybdenum content and low carbon design, it’s well-suited for managing acidic and chloride-laden solutions in heat exchangers, evaporators, condensers, process piping, and scrubbers. Additionally, it’s a popular choice in the pharmaceutical and food processing sectors, where corrosion resistance and hygiene are paramount. 317L tubing is truly versatile, making it an essential component in various demanding environments.
