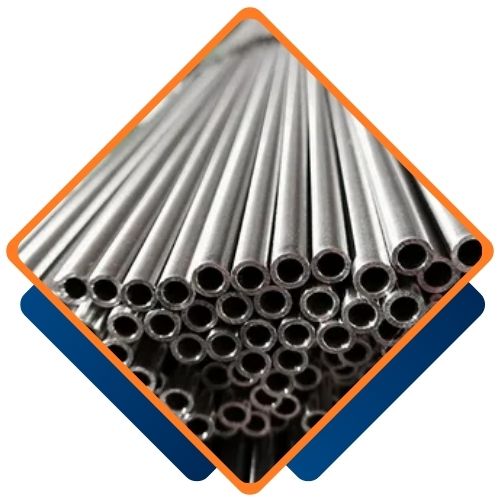

Liam Pipes & Tubes provides premium quality Monel Tubing from Houston, USA, in seamless and welded conditions. Fabricated from Monel 400 and K500 alloys, the tubing is suitable for saltwater, acid, and high-temperature applications. Renowned for great corrosion resistance and mechanical strength, Monel tubing conforms to ASTM B165, B730, and B725 specifications. It possesses better weldability, thermal conductivity, and pressure bearing strengths. Monel tubing is relied upon for long-term applications in marine, chemical processing, oil and gas, and aerospace industries where materials are required to bear stringent, corrosive, or high-stress applications.
Monel tubing consists of ~63% nickel, ~30% copper, and trace iron, manganese, and silicon. Monel K500 contains aluminum and titanium for age hardening. It has tensile strengths from 480 MPa (Monel 400) to 770 MPa (Monel K500), with good ductility and corrosion resistance. The tubing comes in annealed or cold-drawn finishes, with tight tolerances and smooth internal surfaces. It operates exceptionally well in oxidizing and reducing conditions. Monel tubing retains mechanical integrity and leak-tight sealing capabilities in high-pressure, high-heat, and corrosive environments.
| End | Plain End, Beveled End, Treaded |
|---|---|

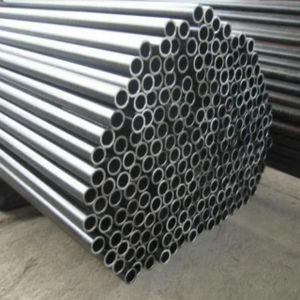

| Monel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |

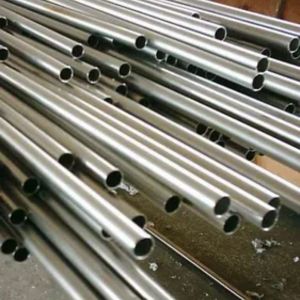

| Monel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Specialize in | Monel Capillary Tube & Other Odd Size Monel Heat Exchanger & Condenser Tubes |
| Monel Tube Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |

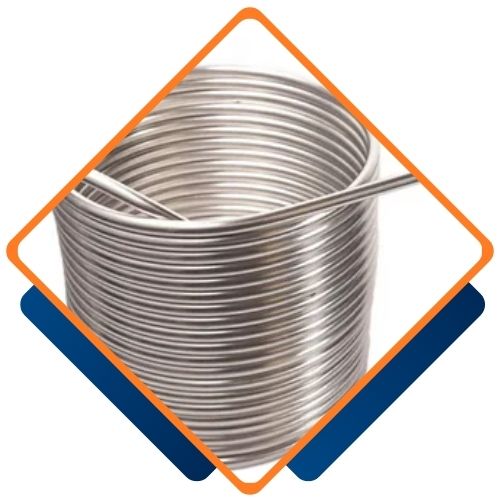

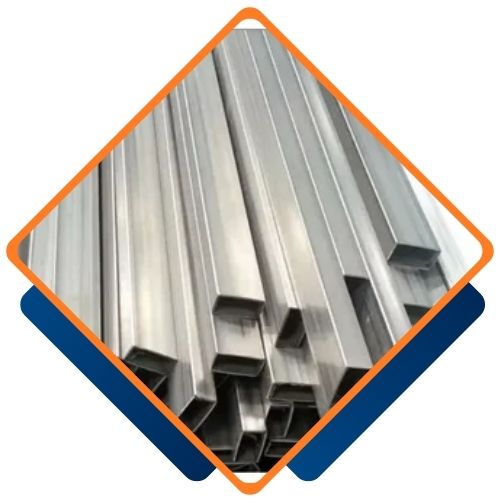

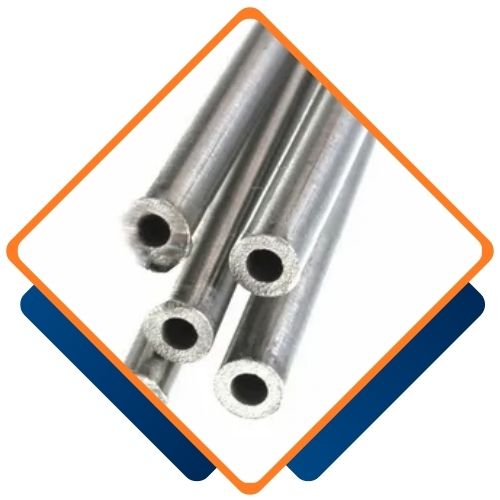

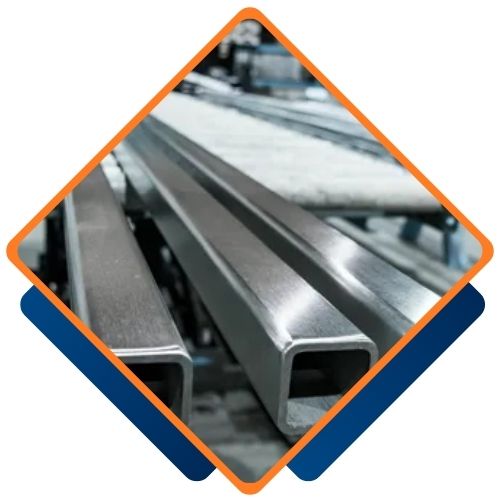

| Monel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Monel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Marking | All Monel Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Monel Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Monel Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Alloy K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44g\cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Tubing from Liam Pipes and Tubes ensures exceptional corrosion resistance, high strength, reliable performance, and superior durability for optimal solutions in various industrial applications.
Liam Pipes and Tubes, one of the largest suppliers of Monel Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
Yes, we offer custom sizes for Monel Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
Monel Tubing is employed in chemical plants, desalination facilities, offshore platforms, and nuclear power plants. It serves marine cooling lines, boiler feedwater systems, and chemical injection stations where contact with seawater or acids is common. In defense and aerospace, it‘s employed in hydraulic and fuel systems because it’s strong and non-magnetic. It‘s also employed in food processing plants, refineries, and cryogenic processes for its corrosion resistance and strength. Regardless of being used to handle aggressive fluids or high-temperature gases, Monel tubing works reliably in the toughest industrial conditions.
