Liam Pipes and Tubes, based in Houston, USA, is a leading manufacturer and supplier of Stainless Steel Condenser Tubing with high-performance piping solutions designed for demanding environments. We are known for our dedication to quality and offer tubing that achieves superior corrosion resistance, thermal conductivity, and mechanical strength. Engineered to the most demanding industry specifications, our condenser tubes offer excellent performance for application in high-reliability systems like HVAC equipment, heat exchangers, and refrigeration plants. Guided by decades of engineering experience and an unwavering commitment to customer satisfaction, Liam Pipes and Tubes is a trusted collaborator for long-lasting and effective thermal management systems.
Stainless Steel Condenser Tubing is usually made of 304 or 316 stainless steel alloys, comprising 18–20% chromium and 8–10% nickel with molybdenum addition in 316 for additional corrosion resistance. The alloys have good strength and stability in corrosive environments. The tubing has a high tensile strength (up to 580 MPa), excellent ductility, and good impact resistance. Its smooth internal surface minimizes fouling, maximizing thermal performance. The union of corrosion resistance, heat conductivity, and strength positions it at the forefront in systems with high heat and corrosive environments.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |

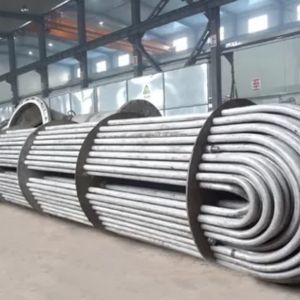

| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |

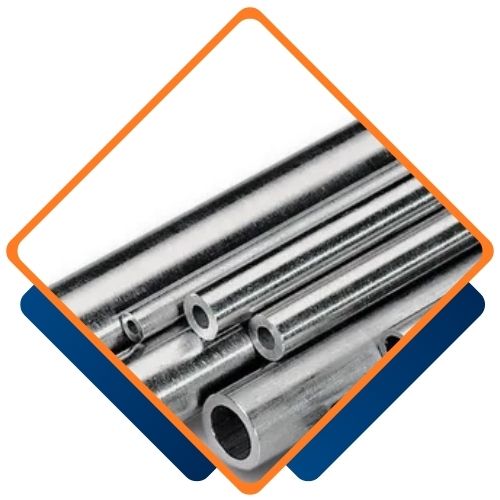

| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

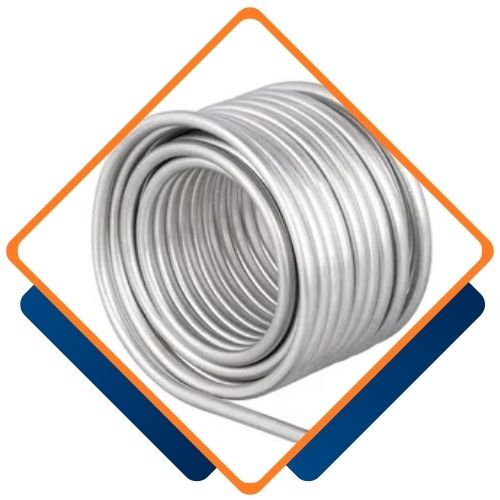

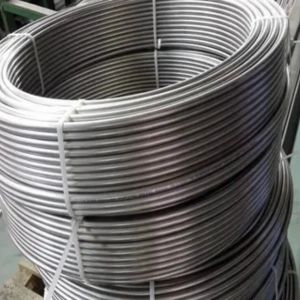

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Liam Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel Condenser Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.

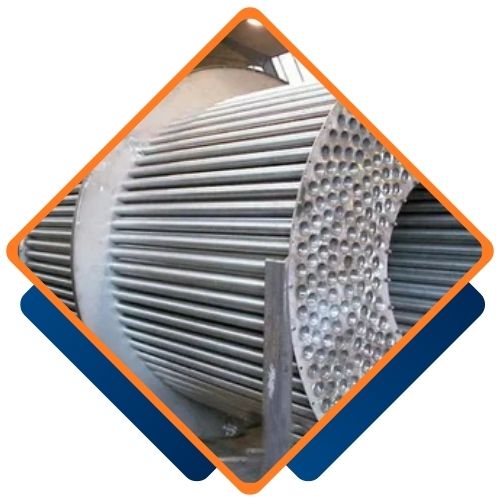

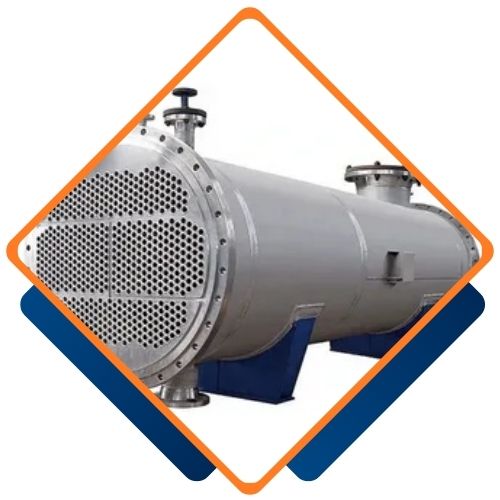

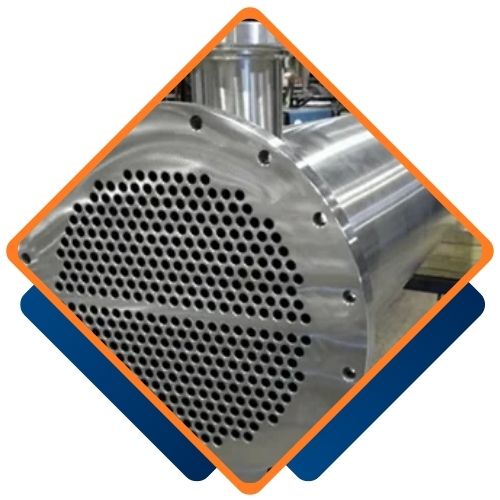

Stainless Steel Condenser Tubing is widely utilized across various industries due to its strength, corrosion resistance, and thermal conductivity. In HVAC and refrigeration units, it optimizes heat transfer efficiency in condensers. In chemical and petrochemical plants, it aids in fluid cooling under corrosive conditions. It is used by power generation plants for condenser systems subjected to high pressure and temperature. It is also ideal for food and beverages processing equipment due to its hygienic nature. Marine-grade corrosion resistance makes it safe for long-term use in shipboard and coastal applications. It is a high-performance and versatile tubing solution overall for thermal systems.
