Home > Stainless Steel > Stainless Steel Square Pipes

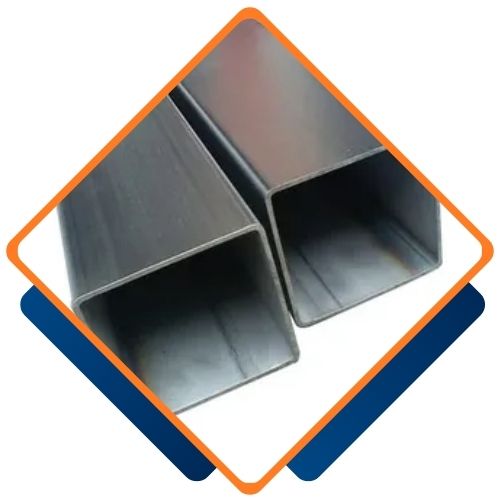

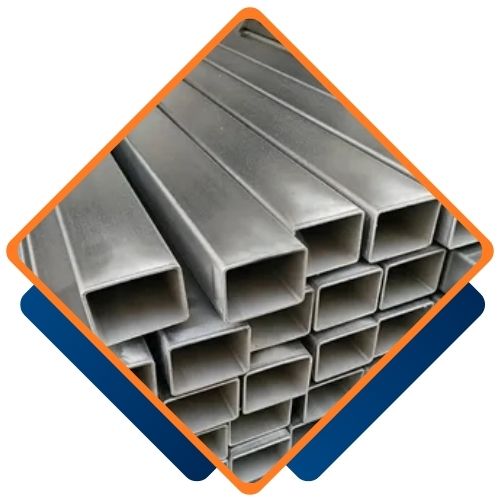

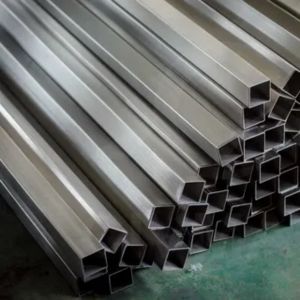

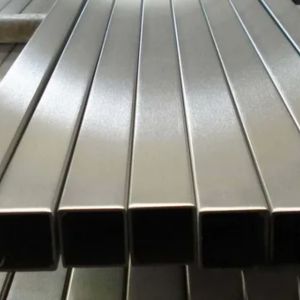

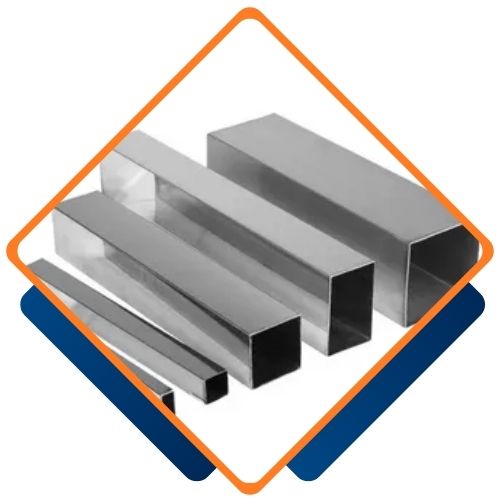

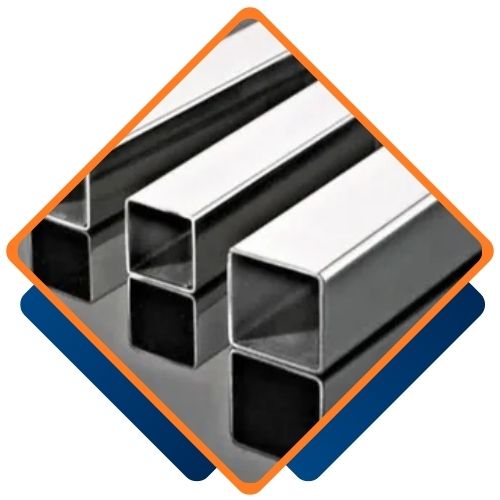

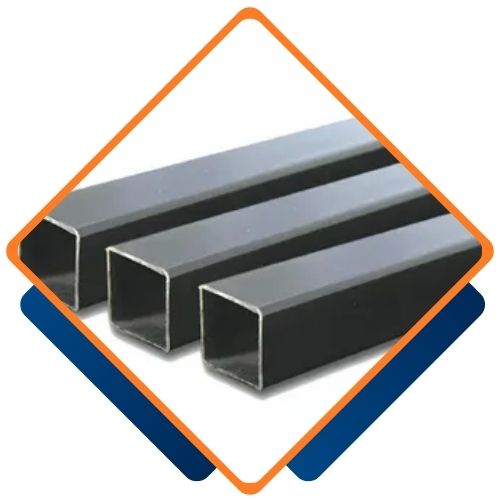

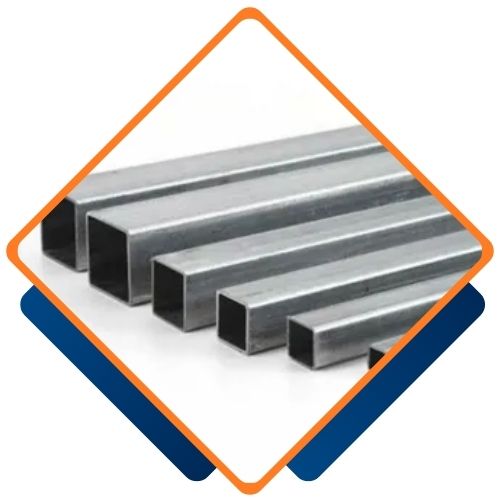

Liam Pipes and Tubes, Houston, USA, is a leading manufacturer and exporter of high-strength Stainless Steel Square Pipes, specifically designed to satisfy the stringent requirements of contemporary industries. Due to their superior corrosion resistance, strength, and aesthetic appeal, these pipes are best suited for structural, architectural, and industrial purposes. Our dedication to innovation and quality enables us to provide long-lasting and customized piping solutions in diverse industries. Used in construction, automotive, aerospace, or chemical processing plants, our stainless steel square pipes provide consistent performance, extended service life, and versatility in even the toughest conditions.
Our Stainless Steel Square Pipes consist of 10–30% chromium, up to 10% nickel, and trace amounts of elements like molybdenum, manganese, and carbon. This content provides improved corrosion, heat, and chemical resistance. These pipes provide high tensile strength (500–700 MPa), yield strength (200–400 MPa), and elongation of about 40%, providing superior ductility and toughness. They retain their structural integrity under stress and resist deformation. Stainless steel square pipes are also simple to fabricate and maintain, providing long-term durability and performance in severe operating conditions.
| Pipe Size | 12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100 |
| Grades | TP – 304/L/H, TP – 316/L/H/Ti, TP – 317L, TP – 321/H, TP – 347/H, 202, JT – 7, J4 – 1, TP – 409/L, TP – 410, TP – 430Ti, TP 439 |
| Standards | ASTM A249 – A269 – A312 – A358 – A409 – A554 – A778 – A789 – A790 |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| Finish | Polished Grit 120 – 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished |
Hollow Sections:
Square:10 mmx10mm – 500 mmx500mm
Retangular:10mm x 20mm – 600mmx400mm
Round: 1/8″ – 4″
Wall Thickness: 0.5 – 20.0mm
Length:0.3 mtr – 18 mtr as customer required
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel square pipes from Liam Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel Square Pipes in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Outside Diameter | Qty/B | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | mm | Lgh | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs |
| 3/8″ | 9.5 | 100 | 0.81 | 0.94 | 1.06 | 1.18 | 1.29 | 1.51 | 1.82 | |||||
| 1/2″ | 12.7 | 100 | 1.10 | 1.28 | 1.45 | 1.61 | 1.78 | 2.10 | 2.55 | |||||
| 5/8″ | 15.9 | 100 | 1.39 | 1.62 | 1.84 | 2.05 | 2.26 | 2.68 | 3.28 | |||||
| 3/4″ | 19.1 | 100 | 1.69 | 1.96 | 2.22 | 2.49 | 2.75 | 3.26 | 4.01 | |||||
| 7/8″ | 22.2 | 100 | 1.97 | 2.29 | 2.60 | 2.91 | 3.22 | 3.83 | 4.72 | |||||
| 1″ | 25.4 | 100 | 2.26 | 2.63 | 2.99 | 3.35 | 3.71 | 4.41 | 5.45 | |||||
| 11/8″ | 28.6 | 50 | 2.55 | 2.97 | 3.38 | 3.79 | 4.19 | 5.00 | 6.18 | |||||
| 11/4″ | 31.8 | 50 | 2.84 | 3.31 | 3.77 | 4.23 | 4.68 | 5.58 | 6.91 | |||||
| 11/2″ | 38.1 | 50 | 3.42 | 3.98 | 4.53 | 5.09 | 5.64 | 6.73 | 8.34 | |||||
| 15/8″ | 41.3 | 50 | 3.71 | 4.32 | 4.92 | 5.52 | 6.12 | 7.31 | 9.07 | |||||
| 13/4″ | 44.5 | 50 | 4.00 | 4.66 | 5.31 | 5.96 | 6.61 | 7.90 | 9.80 | |||||
| 2″ | 50.8 | 10 | 6.08 | 6.82 | 7.57 | 9.04 | 11.24 | 14.83 | 21.79 | |||||
| 21/2″ | 63.5 | 10 | 7.62 | 8.56 | 9.50 | 11.36 | 14.13 | 18.69 | 27.58 | |||||
| 3″ | 76.2 | 10 | 9.17 | 10.30 | 11.43 | 13.68 | 17.03 | 22.55 | 33.37 | 43.88 | ||||
| 31/2″ | 88.9 | 10 | 10.71 | 12.03 | 13.36 | 15.99 | 19.92 | 26.41 | 39.16 | 51.60 | ||||
| 4″ | 101.6 | 10 | 18.31 | 22.82 | 30.27 | 44.95 | 59.32 | 73.39 | 87.16 | |||||
| 5″ | 127 | 10 | ||||||||||||
| 6″ | 152.4 | 10 | ||||||||||||
Yes, we offer custom sizes for Stainless Steel Square Pipes to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
Stainless Steel Square Pipes are widely utilized in many industries because of their durability, resistance to corrosion, and hygienic look. They are suitable for construction in structural framework, handrails, and architectural features. They find usage in chassis, exhaust system, and fuel lines in the automotive and aeronautical industries. Their chemical and heat resistance makes them ideal for chemical processing industries and food and beverage production, where cleanliness is key. Moreover, the pipes are employed in water treatment plants, furniture making, and interior decorating, providing a contemporary and long-lasting solution for both functional and aesthetic applications.
