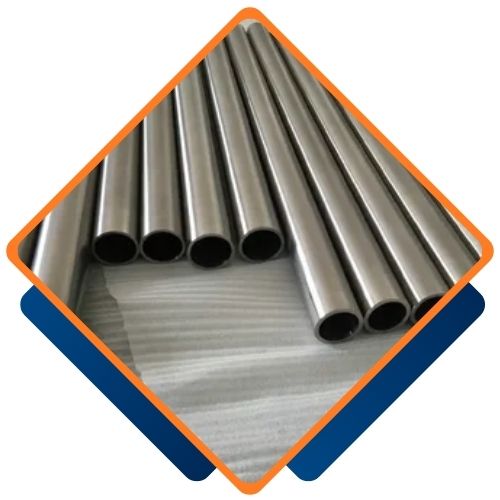

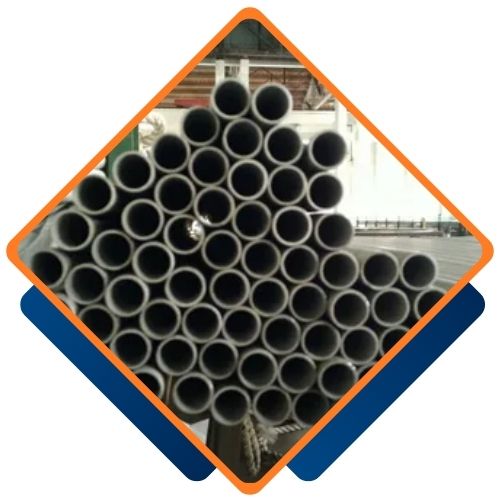

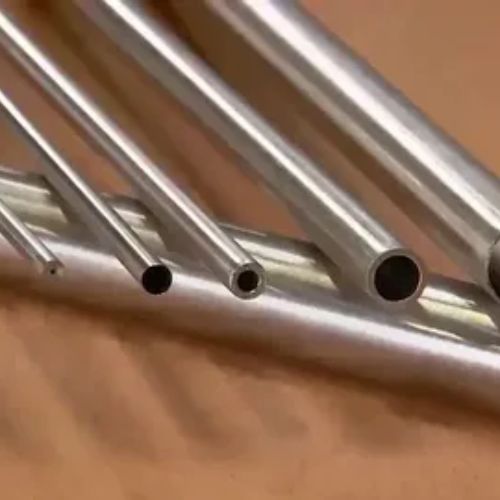

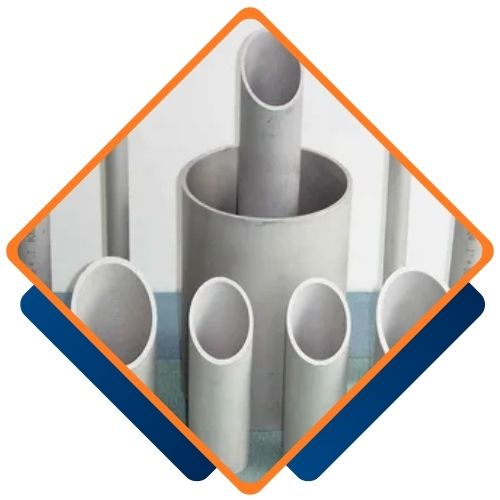

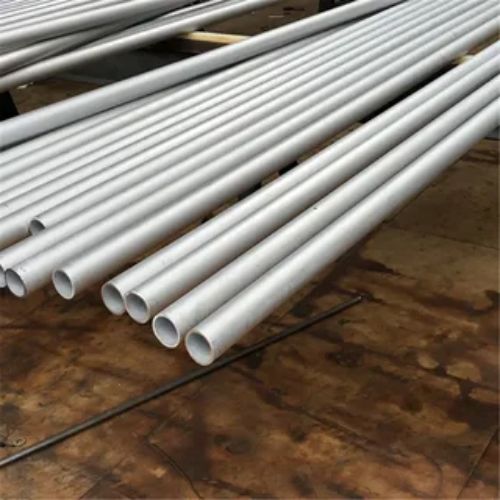

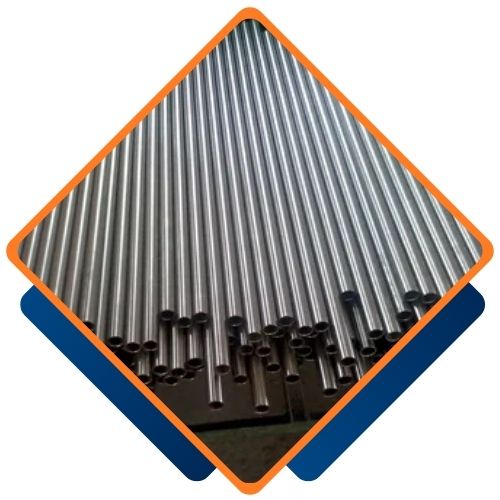

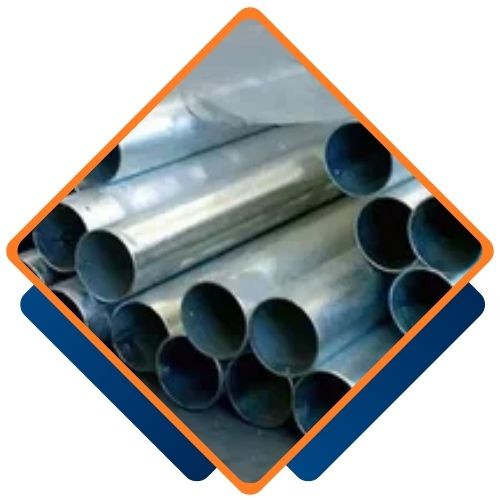

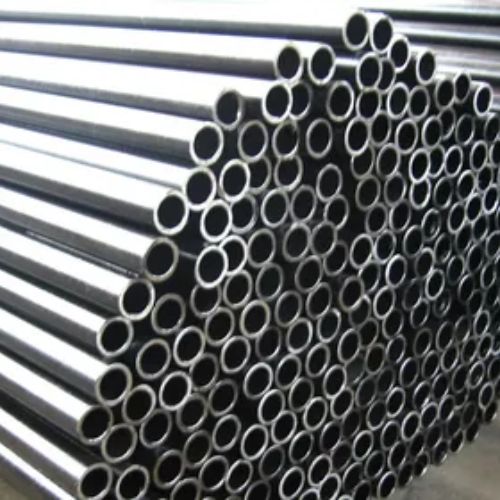

Liam Pipes and Tubes, with its base in Houston, USA, deals in Titanium Boiler Tubing, providing quality corrosion-resistant tubes for challenging boiler and heat exchanger applications. The tubes are fabricated from commercially pure titanium (Grade 2) or titanium alloys (Grade 5), offering unparalleled performance in harsh temperatures and corrosive environments. Our tubing conforms to ASTM B338 and ASME boiler tube standards, guaranteeing reliability in critical systems. With superior heat transfer characteristics and anti-fouling and corrosion resistance, our titanium boiler tubes find suitable applications in power generation, petrochemical, and desalination processes.
Titanium Boiler Tubing is generally manufactured using Grade 2 (commercially pure) or Grade 5 (Ti-6Al-4V) alloys. Grade 2 provides tensile strength of about 550 MPa and yield strength of 480 MPa, with elongation of about 20%. Grade 5 has a higher strength, up to tensile strength of 950 MPa. Both grades have low density (~4.5 g/cm³) and superior corrosion resistance in seawater, acidic, and alkaline environments. Heat resistance of titanium enables it to resist temperatures up to 550°C, and its lightweight nature is ideal for energy-efficient boiler systems.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
Tolerance | Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or beveled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing | A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

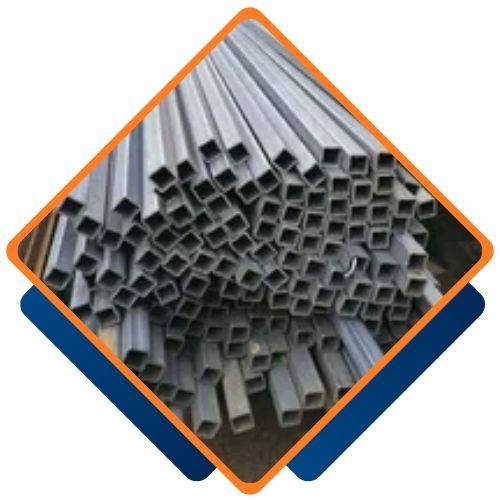

| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Boiler Tubing from Liam Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Liam Pipes and Tubes, a leading supplier of Titanium Boiler Tubing in Houston , USA, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Liam Pipes and Tubes, we provide custom sizes of Titanium Boiler Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@liampipes.us.
Titanium Boiler Tubing is employed in boilers used in power plants, petrochemical refineries, and seawater desalination. The tubes thrive in applications with high-temperature exposure and corrosive conditions, including heat exchangers, condensers, and evaporators. Their excellent strength against pitting due to chlorides, erosion, and fouling renders them suitable for seawater desalination facilities and offshore platforms. Titanium boiler tube is also employed in waste heat recovery systems, hot-gas ducts, and power-plant superheaters. Their high stress and harsh chemical resistance reduces maintenance costs and improves operational life and life cycle considerably.
