Home > Stainless Steel >Stainless Steel 202 Pipes

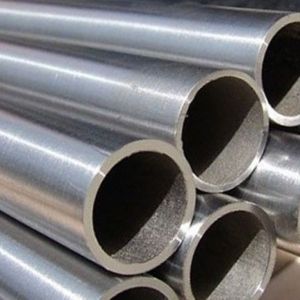

Located in Houston, Texas, Liam Pipes and Tubes is a reputable manufacturer and supplier of stainless steel 202 pipes. A popular option for general engineering and structural applications, SS 202 is an affordable austenitic stainless steel with good corrosion resistance, high strength, and exceptional toughness. Our 202 pipes are renowned for their durability, formability, and weldability in mildly corrosive environments. They are produced in accordance with ASTM A312 standards. Throughout the United States and abroad, Liam Pipes and Tubes offers premium stainless steel piping solutions to sectors like home water systems, transportation, food processing, and construction.
About 17–19% chromium, 4–6% nickel, and 7.5–10% manganese are present in stainless steel 202 pipes, which also have a low carbon content (maximum 0.15%). This alloy lowers cost while preserving good strength and ductility by partially replacing the nickel present in other austenitic grades with manganese. SS 202 pipes have a yield strength of about 275 MPa and a tensile strength of 515–860 MPa. In mildly aggressive environments, they exhibit fair corrosion resistance and good toughness at both high and low temperatures. They are appropriate for indoor piping, transportation, and light structural applications due to their mechanical qualities.
| Specifications | ASTM /ASME SA312/A312 |
|---|---|
| Dimensions | ASTM, ASME, and API |
| Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
| Wall Thickness | Schedule 5S – Schedule XXS |
| Size | 1/2″ NB – 24″ NB |
| Length | Single Random, Double Random & Cut Length. |

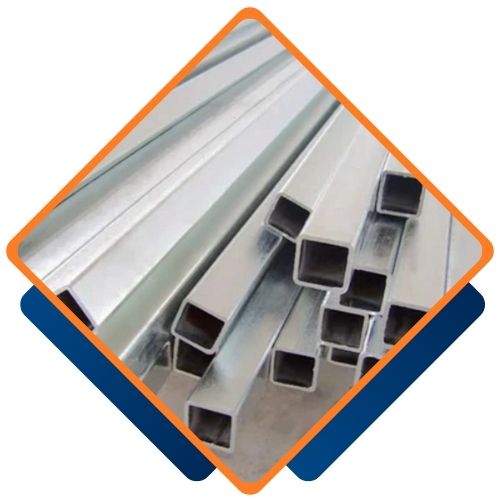

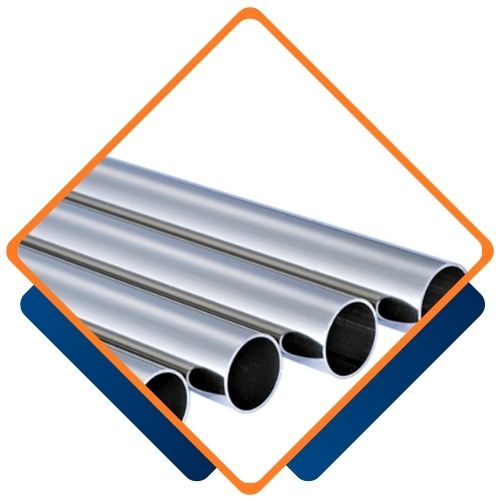

| Form | Round, Square, Rectangular, etc |
| End | Plain End, Beveled End, Treaded |
| Element | Content (%) |
|---|---|
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 4-6 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 202 Pipes from Liam Pipes and Tubes ensures you get the high quality products you need. Our pipe is made from premium materials, providing exceptional strength and corrosion resistance. With extensive industry experience, we put customer satisfaction first, and provide expert guidance throughout the selection process. We offer competitive pricing and strict quality control to meet international standards. Additionally, our commitment to on-time delivery ensures that your services are delivered on time. Trust Liam for reliable, high-performance plumbing solutions that will stand the test of time.
Liam Pipes and Tubes, one of the largest suppliers of Stainless Steel 202 Pipes in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||
| DIA | SCH 80 S | SCH 80 | SCH 100 | SCH 120 | SCH. 140 | SCH.160 | SCH.XXS | |||||||||
| (A) | (B) | Meter MM | Wall Thk | WT Kg/Mtr | Wall Thk | WT Kg/Mtr | Wall Thk | WT Kg/Mtr | Wall Thk | WT Kg/Mtr | Wall Thk | WT Kg/Mtr | Wall Thk | WT Kg/Mtr | Wall Thk | WT Kg/Mtr |
| 6 | 1/8 | 10.3 | 2.41 | 0.47 | ||||||||||||
| 8 | 1/4 | 13.7 | 3.02 | 0.82 | ||||||||||||
| 10 | 3/8 | 17.2 | 3.2 | 1.12 | ||||||||||||
| 15 | 1/2 | 21.3 | 3.73 | 1.64 | 4.75 | 1.97 | 7.47 | 2.59 | ||||||||
| 20 | 3/4 | 26.7 | 3.91 | 2.93 | 5.54 | 2.93 | 7.82 | 3.69 | ||||||||
| 25 | 1 | 33.4 | 4.55 | 3.29 | 6.35 | 4.3 | 9.09 | 5.53 | ||||||||
| 32 | 11/4 | 24.2 | 4.85 | 4.53 | 6.35 | 5.69 | 9.7 | 7.88 | ||||||||
| 40 | 11/2 | 48.3 | 5.08 | 5.49 | 7.14 | 7.35 | 10.16 | 9.69 | ||||||||
| 50 | 2 | 60.3 | 5.54 | 7.6 | 8.71 | 11.26 | 11.07 | 13.65 | ||||||||
| 65 | 21/2 | 73 | 7.01 | 11.59 | 9.53 | 15.15 | 14.02 | 20.72 | ||||||||
| 80 | 3 | 88.9 | 7.62 | 15.51 | 11.13 | 21.67 | 15.24 | 28.11 | ||||||||
| 90 | 31/2 | 101.6 | 8.08 | 18.92 | 16.15 | 34.56 | ||||||||||
| 100 | 4 | 114.3 | 8.56 | 22.66 | 11.13 | 28.75 | 13.49 | 34.05 | 17.12 | 41.66 | ||||||
| 125 | 5 | 141.3 | 9.53 | 31.44 | 12.7 | 40.9 | 15.88 | 49.87 | 19.05 | 58.31 | ||||||
| 150 | 6 | 168.3 | 10.97 | 43.21 | 14.27 | 55.03 | 18.24 | 68.53 | 21.95 | 79.1 | ||||||
| 200 | 8 | 219.1 | 12.7 | 65.63 | 15.06 | 76.93 | 18.24 | 91.73 | 20.62 | 102.47 | 23.01 | 112.97 | 22.23 | 108 | ||
| 250 | 10 | 273.1 | 12.7 | 82.8 | 15.06 | 97.27 | 18.24 | 116.38 | 21.41 | 134.9 | 25.4 | 157.51 | 28.58 | 174.95 | 25.4 | 155.5 |
| 300 | 12 | 323.9 | 12.7 | 98.95 | 17.45 | 133.88 | 21.41 | 162.14 | 25.4 | 189.82 | 28.58 | 211.31 | 33.32 | 242.4 | 25.4 | 189.82 |
| 350 | 14 | 355.6 | 12.7 | 109.04 | 19.05 | 160.54 | 23.8 | 197.74 | 27.76 | 227.88 | 31.75 | 257.47 | 35.71 | 286.04 | ||
| 400 | 16 | 406.4 | 12.7 | 125.2 | 21.41 | 206.4 | 26.19 | 249.34 | 30.94 | 290.88 | 36.53 | 338.32 | 40.46 | 370.74 | ||
| 450 | 18 | 457.2 | 12.7 | 141.35 | 23.8 | 258.29 | 29.36 | 314.54 | 34.93 | 369.34 | 39.67 | 414.74 | 45.24 | 466.67 | ||
| 500 | 2C | 508 | 12.7 | 157.51 | 26.19 | 315.97 | 32.54 | 387.41 | 38.1 | 448.3 | 44.45 | 515.94 | 49.99 | 573.31 | ||
| 550 | 22 | 558.8 | 12.7 | 173.66 | 28.57 | 379.7 | 34.92 | 457.83 | 41.27 | 535.17 | 47.62 | 609.3 | 53.97 | 682.57 | ||
| 600 | 24 | 609.6 | 12.7 | 189.82 | 30.94 | 448.3 | 38.89 | 555.76 | 46.02 | 649.44 | 52.37 | 730.72 | 59.51 | 819.7 | ||
| 650 | 26 | 660.4 | 12.7 | 205.97 | (24.66D-t) t 1000 Wt/pam + formula WT Stainless Steel Pipe OD (mm) – W.T. (mm) XW.T. (mm) X 0.02466 = Kg. per mtr. | |||||||||||
| 700 | 28 | 711.2 | 12.7 | 222.13 | ||||||||||||
| 750 | 3C | 762 | 1270 | 238.28 | ||||||||||||
| 800 | 32 | 812.8 | 12.7 | 254.44 | ||||||||||||
| 850 | 34 | 863.6 | 12.7 | 270.5 | ||||||||||||
| 900 | 36 | 914.4 | 12.7 | 286.75 | ||||||||||||
Yes, we offer custom sizes for Stainless Steel 202 Pipes to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
Applications requiring good mechanical strength, moderate corrosion resistance, and cost effectiveness frequently use stainless steel 202 pipes. Structural frameworks, home water systems, furniture tubing, kitchenware, car trim, and railings are among the common applications. They are a cost-effective substitute for higher-nickel stainless steels in construction for load-bearing and architectural elements. They are also utilised for non-critical contact equipment in the food industry. Because it strikes a balance between cost, strength, and corrosion resistance for general-purpose applications, SS 202 works well indoors or in semi-protected environments but is not appropriate for highly corrosive or marine environments.
