Home > Stainless Steel >Stainless Steel 304L EFW pipes

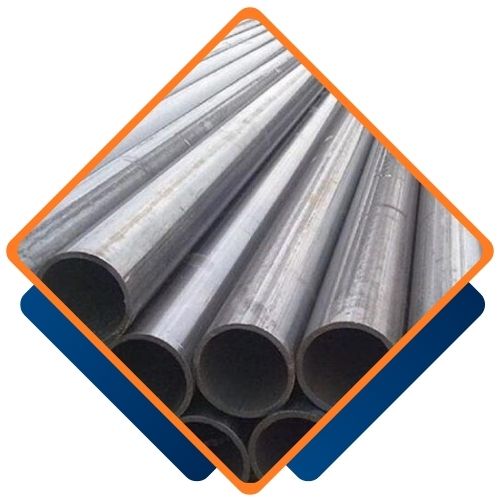

Based in Houston, Texas, Liam Pipes and Tubes is a top producer and supplier of stainless steel EFW (Electric Fusion Welded) pipes. Our speciality is providing high-performance EFW pipes that are made to withstand corrosion and be strong in harsh industrial settings. With the use of cutting-edge electric fusion welding techniques, our stainless steel EFW pipes are manufactured with exact measurements, consistent wall thickness, and excellent structural integrity. These pipes, which come in a variety of grades, sizes, and specifications, are perfect for high-temperature services, structural applications, and fluid transportation. Liam Pipes and Tubes guarantees excellent customer service, prompt delivery, and superior quality.
Stainless steel EFW pipes are commonly produced in grades like 304, 304L, 316, 316L, and others. The grades vary in their carbon content and contain 16–25% chromium and 8–20% nickel. Excellent resistance to oxidation, scaling, and corrosion is provided by these elements. EFW pipes have good elongation and toughness, as well as high tensile strength (up to 600 MPa) and yield strength (up to 250 MPa). They are perfect for critical service applications because the electric fusion welding process produces a strong, consistent weld seam that guarantees mechanical reliability under high pressure and temperature conditions.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304L | S30403 | 1.4306 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 3304S11 | 03Х18Н11 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304L | 485 | 40 | 170 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304L EFW Pipes from Liam Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
We offer custom sizes for Stainless Steel 304L EFW Pipes to meet your specific needs. Our dedicated team at Liam Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@liampipes.us.
Industries including oil and gas, petrochemicals, power generation, water treatment, and shipbuilding all make extensive use of stainless steel EFW pipes. They are perfect for moving chemicals, gases, and fluids under pressure because of their high strength, resistance to corrosion, and smooth interior finish. Because of their resilience to extreme temperatures and conditions, these pipes are also utilised in boiler systems, heat exchangers, condensers, and structural applications. EFW pipes are frequently utilised in desalination plants, refineries, and offshore platforms where long-term performance, weld integrity, and resistance to environmental deterioration are essential for efficiency and safety.
