Home > Duplex Steel > Duplex Steel Mechanical Tubing
Liam Pipes & Tubes produces and offers Duplex Steel Mechanical Tubing in Houston, USA, suitable for structural and load-bearing uses demanding high strength and resistance to corrosion. Produced using grades such as UNS S31803 and S32205, duplex tubing is a marriage of the best characteristics of ferritic and austenitic stainless steels. It provides double the strength of 300-series stainless steel with excellent resistance to chloride stress corrosion and is ideal for offshore and high-pressure applications. Produced according to ASTM A789 and A790 specifications, Duplex mechanical tubing provides outstanding formability, toughness, and dimensional stability in adverse mechanical and structural applications.
Duplex Steel Mechanical Tubing usually contains 22–23% Cr, 4.5–6.5% Ni, 3–3.5% Mo, and a balanced ferrite-austenite microstructure. Yield strength is 450–550 MPa, tensile strength up to 800 MPa, and elongation ~25–30%. The tubing provides high fatigue strength, good weldability, and outstanding pitting and crevice corrosion resistance. It retains mechanical properties in cryogenic and high-temperature conditions. Heat–treated or cold–formed tubing can be supplied for high-load structural or pressure-containing use, providing stability in cycling loading and harsh environment conditions.
| Size | : | 1/2″NB TO 12 “NB IN |
| Standards | : | ASTM A 790 ASME SA 790 |
| Grades | : | (Duplex UNS S31803), UNS 2UNS S32205 (Duplex UNS S32205) |
| Length | : | Single Random, Double Random & Cut Length |
| Type | : | Mechanical |
| Form | : | Round, Hydraulic Etc |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80 |
| Chemical Composition % | ||||
| Cr | Ni | Mo | C | N |
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
| Mn | Si | P | S | Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
| Duplex Steel | Tubing |
| Density | 7.805 |
| Melting Range,℃ | 1450 ℃ |
| Elongation % | 25 min. |
| Tensile Strength (Mpa) | 655 |
| Yield Strngth (Mpa) | 450 |
| Hardness (Brinell) | 293 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Mechanical Tubes from Liam Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Duplex steel solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Liam Pipes and Tubes, one of the largest suppliers of Duplex Steel Mechanical Tubing in the Houston s, USA. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Duplex steel products in the region, delivering reliable solutions to meet diverse project requirements.
Yes, we provide custom sizes for Duplex Steel Mechanical Tubing to meet your specific requirements. At Liam Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@liampipes.us.

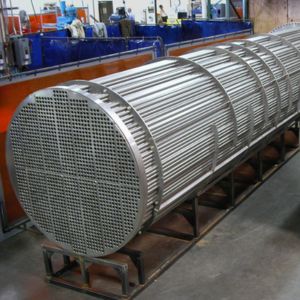

Duplex Steel Mechanical Tubing finds application in offshore structures in oil & gas, heat exchangers, desalination plants, and chemical plants. In structural buildings, it‘s preferred for corrosion resistance and strength-to-weight ratio. It also finds application in hydraulic systems, machine parts, and load bearing supports in marine and coastal engineering. Duplex tubing is resistant to cracking and deformation when subjected to vibration and cyclic loading, and therefore it finds application in bridges, pressure vessels, and piping support frames. It provides long service life in conditions where regular stainless steels succumb to chloride corrosion or mechanical fatigue.
