Home > Duplex Steel > Duplex Steel Pipes 2205

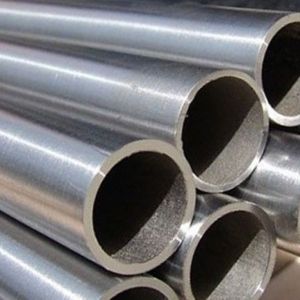

Liam Pipes and Tubes, based in Houston, USA, is a trusted manufacturer and supplier of Duplex Steel Pipes 2205, serving a variety of industrial needs. The company has built a solid reputation for providing top-notch piping solutions that blend strength, durability, and impressive corrosion resistance. Duplex 2205 pipes are especially well-suited for tough environments, thanks to their outstanding mechanical properties and ability to withstand corrosion, particularly in chloride-heavy conditions. Liam Pipes and Tubes offers these pipes in a range of sizes, schedules, and specifications to comply with global standards, catering to industries like oil & gas, petrochemical, marine, and structural engineering, all while ensuring reliable performance and prompt delivery.
Duplex Steel 2205 is made up of about 22% chromium, 5-6.5% nickel, 3-3.5% molybdenum, and a touch of nitrogen, with iron making up the rest. This unique dual-phase structure (ferrite and austenite) gives it remarkable corrosion resistance and high mechanical strength. The alloy boasts a minimum yield strength of 450 MPa and a tensile strength around 620 MPa, along with good elongation and impact toughness. Duplex 2205 is particularly resistant to stress corrosion cracking, pitting, and crevice corrosion in aggressive environments, especially those with chlorides, acids, and high temperatures.
| Pipe Standard | AISI, DIN, EN, GB, JIS, ASTM, ASME |
|---|---|
| Seamless Pipe Outer Diameter | 6.00 MM OD up – 250 MM OD, Sizes up to 12 Inch NB |
| Welded Pipes sizes | 5.0 MM – 1219.2 MM |
| EFW Pipes size | 5.0 MM to 1219.2 MM |
| Pipe Thickness | 0.3MM to 50 MM |
| Size | 3.35 – 101.6 MM OD, 15 – 150 NB Inch |
| Size | 6.35 – 152 MM outer diameter |
| wall thickness | 0.020 inch to 0.220inch |
| Schedule | Schedule 5, 10, 40, 80, 80S, 160, XXS, XS Duplex 2205 Pipe Supplier |
| Finish | Annealedand Pickled, Polished, Mirror finish, Bright and Annealed, MF, NO.1, NO.4, 2B, BA, HL, 8K, etc |

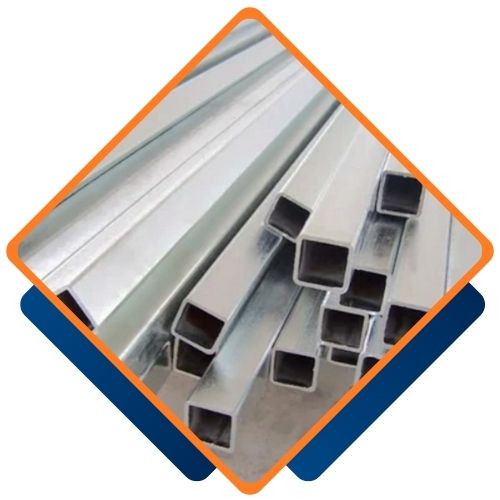

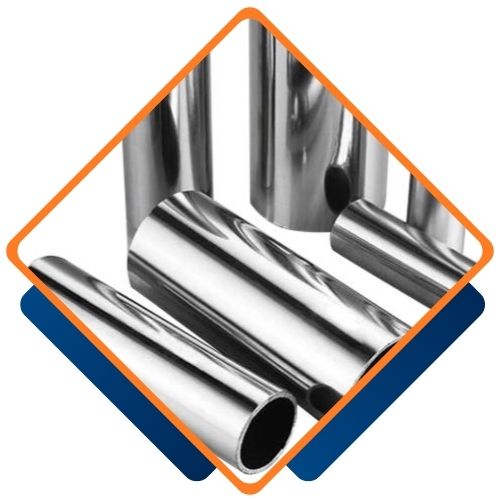

| Form | Straight Pipes, Round, Rectangular, Hydraulic, Square, Coiled, U Shape, Hollow etc. |
| Pipe Length | Single Random, Double Random, Standard & Cut length |
| End | Plain End, Beveled End, Treaded Pipe. |

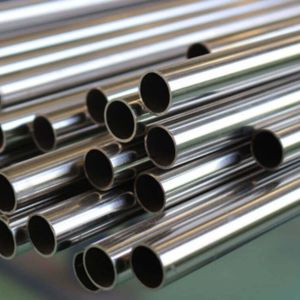

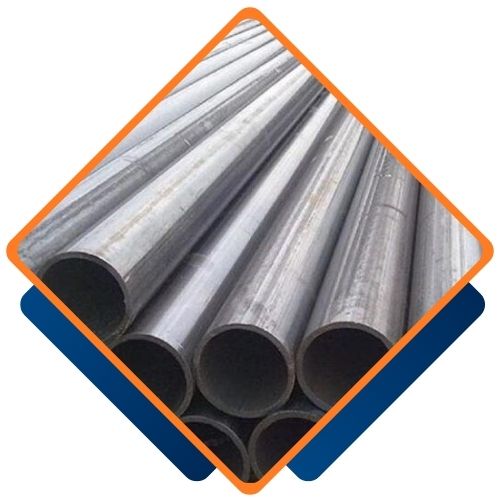

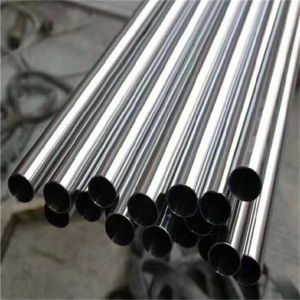

| Tubes Types | Alloy 2205 Seamless, ERW, EFW, Welded, Fabricated, CDW, DOM, CEW Pipes |
| Pipe Marking | All Pipes are marked as follows: Supplier or Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Boiler, Heatexchanger, Oil Tube, Gas Tube and Fluid Tube |
| Carbon | Nitrogen | Phosphorus | Silicon | Manganese | Molybdenum | Iron | Chromium | Sulfur | Nickel |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Density | Melting Point | Yield Strength | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C | Psi – 80000, MPa – 550 | Psi – 116000, MPa – 800 | 15 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Pipes 2205 from Liam Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Duplex Steel 2205 pipes are widely used in industries that demand strong materials with excellent corrosion resistance. In the oil and gas sector, you’ll find them in offshore rigs, pipelines, and pressure vessels. The chemical and petrochemical industries depend on these pipes for transporting corrosive fluids and gases. In marine applications, they’re utilized in seawater systems, desalination plants, and shipbuilding. Additionally, they play a crucial role in structural frameworks, heat exchangers, pulp and paper processing, and food processing equipment, where a long service life and low maintenance in harsh conditions are vital.
Yes, we offer custom sizes for Duplex Steel Pipes 2205 to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 Pipe | 1.4462 / 1.4462 | S31803 / S32205 |
| Pipe Outer Diameter in mm | Pipe Wall Thickness in mm | inches | Schedule | Kg/m |
|---|---|---|---|---|
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Duplex steel pipes 2205 is widely used in various industries due to its excellent durability and corrosion resistance. Typical applications include oil and gas production where they are used in pipelines, risers and separators. In the pharmaceutical industry. These tubes are passed through corrosive water and heat exchangers. They are also found in marine applications such as shipbuilding and offshore structures due to the corrosion resistance of seawater. In addition duplex steel pipe is suitable for pressure vessels 2205 and valves providing durability in harsh environments.
