Home > Copper Nickel > Copper Nickel Boiler Tubing

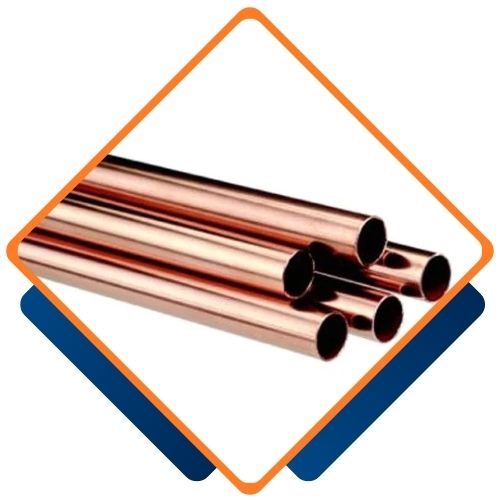

Liam Pipes and Tubes is a reputable manufacturer and supplier of high-quality Copper Nickel Boiler Tubing, proudly based in Houston, USA. Known for their exceptional products and deep industry knowledge, this company provides tubing solutions that adhere to strict marine, industrial, and power generation standards. Their Copper Nickel Boiler Tubing is celebrated for its outstanding corrosion resistance, thermal conductivity, and durability in high-temperature, high-pressure situations. With a strong focus on precision engineering and customer satisfaction, Liam Pipes and Tubes caters to a variety of sectors, offering robust and reliable tubing designed specifically for critical heat exchanger and boiler system needs.
Copper Nickel Boiler Tubing mainly consists of copper (Cu) and nickel (Ni), with popular grades like 90/10 (90% Cu, 10% Ni) and 70/30 (70% Cu, 30% Ni). These alloys may also contain trace amounts of iron and manganese to boost strength and corrosion resistance. Mechanically, they showcase tensile strength between 275 to 500 MPa, along with impressive elongation and impact characteristics. Their remarkable resistance to seawater corrosion, stress corrosion cracking, and biofouling makes them perfect for marine and boiler applications. The tubing remains stable and strong, even under high temperature and pressure conditions.
| Boiler Tube Standard | ASTM B552 / ASME SB552 |
| Seamless Boiler Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Boiler Tube Sizes | 1 / 2″ NB – 24″ NB |
| Boiler Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Boiler Tubes available Ex-stock |
| Boiler Tube Manufacturing Process | Seamless / Welded / ERW |
| Cupro Nickel Boiler Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Boiler Tube Length | Single Random, Double Random, Standard & Cut length |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Cupro Nickel Boiler Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Properties | Imperial | Metric |
|---|---|---|
| Yield strength (depending on temper) | 40000-76000 psi | 276-524 MPa |
| Shear modulus | 6380 ksi | 44.0 GPa |
| Tensile strength | 38000-77000 psi | 262-531 MPa |
| Elongation at break (in 50.8 mm) | 46% | 46% |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 17000 ksi | 117 GPa |
| Machinability (UNS C36000 (free-cutting brass) = 100) | 20 | 20 |
| Designation | Chemical Composition % | ||||||||
| Cu | Sn | Al | As | Ni | Fe | Mn | Pb max. | Zn | |
| C70400 | Rem | – | – | – | 4.8-6.2 | 1.3-1.7 | 0.3-0.8 | 0.05 | 1.0max |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Boiler Tubing from Liam Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Boiler Tubing from Liam Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
Yes, we offer custom sizes for Copper Nickel Boiler Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.
Copper Nickel Boiler Tubing is widely utilized in marine and offshore industries for seawater-cooled heat exchangers, condensers, and desalination plants, thanks to its excellent resistance to saltwater corrosion. In power plants and shipbuilding, it’s the go-to choice for boiler and condenser tubing where thermal conductivity and longevity are crucial. It’s also used in oil refineries, chemical processing plants, and HVAC systems, where effective heat transfer and corrosion resistance are vital. Its anti-biofouling properties further enhance its effectiveness in challenging environments, ensuring reliable performance and lower maintenance in corrosive conditions.
