Home > Copper Nickel > Copper Nickel 70/30 Tubing
Liam Pipes and Tubes is a major supplier and manufacturer located in the Houston s, USA, specializing in high quality pipes and tubes in many different industrial applications. Our company has years of experience offering all sorts of products including Copper Nickel 70/30 Tubing which is known for its durability, strength, and corrosion resistance. With such diverse applications, Copper Nickel 70/30 Tubing can be used in marine applications, heat exchangers, and chemical processing reliable to deliver the performance needed in challenging situations. We pride ourselves on our quality products and customer service.
Copper Nickel 70/30 tubings are produced consisting of 70% copper and 30% nickel, plus trace amounts of iron and manganese for extra strength. This material is also highly resistant to corrosion, notably in seawater and brine. Additionally, it has strong mechanical properties (up to 570 MPa tensile strength), elongation (up to 40%), and resistance to stress corrosion cracking. It is a very tough tubing type with very good thermal and electrical conductivity; it is also resistant to biological fouling. This specification is used in marine applications, heat exchangers, and condenser systems.
Specification : ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Wall Thickness : Between 0.15mm and 1.50 mm
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 372-517 MPa | 54000-75000 psi |
| Tensile strength, yield (depending on temper) | 88.0-483 MPa | 12800-70100 psi |
| Elongation at break (in 381 mm) | 45.0% | 45.0% |
| Charpy impact | 107 J | 78.9 ft-lb |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 57.0 GPa | 8270 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 150 GPa | 21800 ksi |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
| Melting point | 2140°F | 1171°C |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 70/30 Tubing from Liam Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Liam Pipes and Tubes, one of the largest suppliers of Copper Nickel 70/30 Tubing in Houston , USA, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| Size (in) | Wall Thickness (in) | Outside Diameter (in) | Approx Weight (lbs/ft) |
|---|---|---|---|
| 3/8 OD | 0.049 | 0.38 | 0.2 |
| 2-1/2 | 0.38 | 2.88 | 12.1 |
| 1/4 OD | 0.035 | 0.25 | 0.1 |
| 1/4 | 0.072 | 0.54 | 0.43 |
| 1/2 | 0.120 | 0.84 | 1.1 |
| 3/8 | 0.095 | 0.68 | 0.19 |
| 1 | 0.180 | 1.32 | 2.61 |
| 1-1/4 | 0.220 | 1.66 | 2.18 |
| 3/4 | 0.148 | 1.05 | 1.71 |
| 1-1/2 | 0.25 | 1.9 | 5.25 |
| 2 | 0.340 | 2.38 | 8.85 |
| 3 | 0.46 | 3.5 | 18.7 |
Yes, we offer custom sizes for Copper Nickel 70/30 Tubing to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.

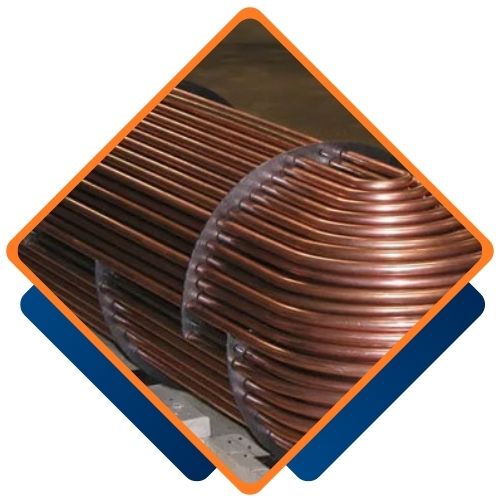

Copper Nickel 70/30 tubing, with a composition of 70% copper and 30% nickel, is often used in most marine and offshore industries due to corrosion resistance, specifically in seawater. Copper Nickel 70/30 is also used in heat exchangers, desalination plants, and in cooling systems, especially where marine or bio-fouling is prevalent or could occur. Its durability and strength can tolerate high temperatures as it is often used in chemical processing, power plants, and in marine applications such as shipbuilding. As copper nickel 70/30 tubing has high thermal conductivity it has applications in heat exchangers and heat transfer systems due to its corrosion resistance.
