Home > Stainless Steel > Stainless Steel 316H Welded Pipes
Liam Pipes and Tubes, located in Houston, USA, stands out as a leading manufacturer and supplier of Stainless Steel 316H Welded Tubing. They provide top-notch tubing solutions designed for high-temperature and high-pressure applications. Crafted from a high-carbon variant of 316 stainless steel, 316H tubing boasts improved creep strength and heat resistance, making it perfect for sectors like power generation, chemical processing, and oil & gas. Using cutting-edge techniques to comply with ASTM A249 and A269 standards, Liam’s 316H welded tubing merges durability, corrosion resistance, and precise dimensions, ensuring reliable performance in critical environments where high temperatures are a concern.
When it comes to the composition and mechanical properties of Stainless Steel 316H Welded Tubing, it features chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and a higher carbon content (0.04–0.10%) compared to standard 316. This unique blend boosts its high-temperature strength and creep resistance. It delivers a tensile strength ranging from 515 to 690 MPa and a yield strength of 205 MPa, along with remarkable resistance to pitting, crevice corrosion, and general oxidation. The welded design guarantees consistent strength and weld integrity. 316H excels in environments with high temperatures and aggressive chemicals, making it a go-to choice for demanding industrial applications that need both corrosion resistance and mechanical toughness.
Specifications : ASTM A312 / ASME SA312
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size available Ex-stock
Thickness : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Size : 1/2″ NB – 24″ NB
Type : Welded

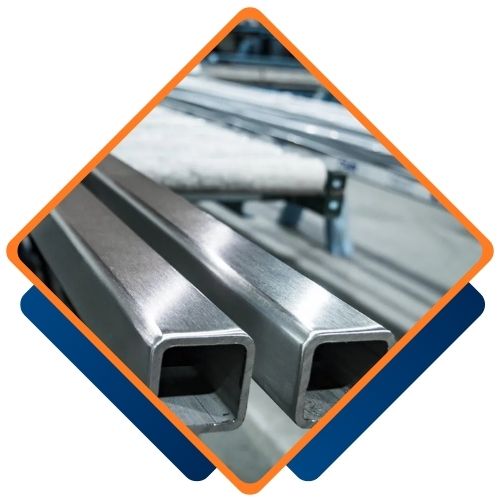

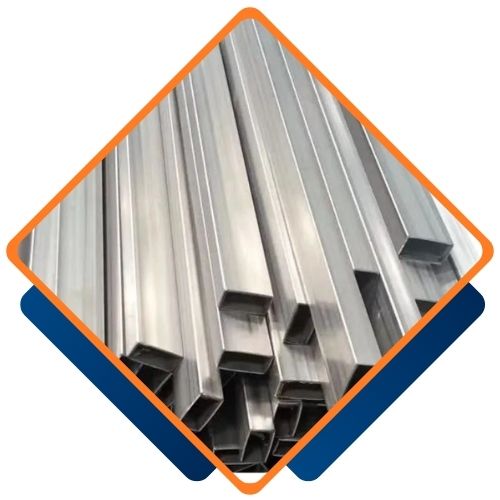

Form: Round Pipes, Square Pipes, Rectangular Pipes.
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
| STANDARD | WERKSTOFF NR. | UNS |
| SS 316H | 1.4401 | S31609 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316H | 515 | 205 | 40% | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316H Welded Pipes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
Liam Pipes and Tubes, a leading manufacturer and supplier of Stainless Steel 316H Welded Pipes in Houston , USA, offers a comprehensive range of high-quality pipes and tubing suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us a trusted choice for regional products.
| NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
| 1/8″ | ✓ | ✓ | ✓ | ✓ | |
| 1/4″ | ✓ | ✓ | ✓ | ✓ | |
| 3/8″ | ✓ | ✓ | ✓ | ✓ | |
| 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5″ | ✓ | ✓ | ✓ | ✓ | |
| 6″ | ✓ | ✓ | ✓ | ✓ |
We offer custom sizes for Stainless Steel 316H Welded Pipes to meet your specific needs. Our dedicated team at Liam Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@liampipes.us.

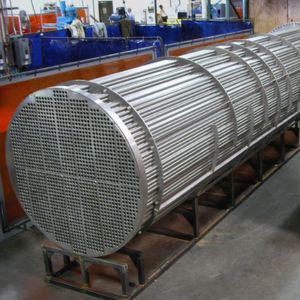

Stainless Steel 316H Welded Tubing finds its way into a variety of applications, including heat exchangers, boilers, superheaters, pressure vessels, and chemical reactors, particularly where high-temperature strength and corrosion resistance are essential. Industries such as oil & gas, power generation, petrochemicals, refineries, and thermal processing depend on 316H for its reliability under high pressure and temperature conditions. The elevated carbon content enhances creep resistance, ensuring that this tubing can handle the toughest challenges in demanding environments.
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316H | 8000 | 500 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 740 |
