Carbon Steel EN10216-2 Pipe Manufacturer, Supplier and Exporter in Houston , USA

Liam Pipes and Tubes is a reputable manufacturer and supplier of Carbon Steel EN 10216-2 Pipes, proudly based in Houston, USA. They specialize in delivering top-notch seamless steel pipes that adhere to the EN 10216-2 standard, specifically crafted for high-pressure applications at elevated temperatures. These pipes find their way into boilers, pressure vessels, and heat exchangers across a variety of industries, including power generation and petrochemical processing. Liam Pipes and Tubes is committed to ensuring that every pipe is produced to precise specifications, guaranteeing consistent performance, durability, and reliability even in the toughest thermal and pressure conditions.

Carbon Steel EN10216-2 Pipe Supplier in Houston , CS EN10216-2 Pipe Exporter in Houston, DIN 17175 CS EN10216-2 Pipe Sizes in mm, EN10216-2 Carbon Steel Pipe Manufacturer in Los Angeles , ASTM A312 EN 10216-2 CS Pipe Price List in Texas, CS EN10216-2 Pipe Distributor in Texas, DIN 17175 EN10216-2 Carbon Steel Pipe in California, ASTM A312 EN 10216-2 CS Pipe Supplier in Los Angeles , DIN 17175 EN10216-2 Carbon Steel Pipe Distributor in USA

The Carbon Steel EN 10216-2 Pipes are constructed from both non-alloy and alloy steels, featuring grades like P235GH, P265GH, 16Mo3, and 13CrMo4-5. These materials boast impressive mechanical properties, with tensile strengths ranging from 360 MPa to over 580 MPa and yield strengths reaching up to 440 MPa, depending on the specific grade. The addition of alloying elements such as molybdenum and chromium enhances their resistance to heat, oxidation, and fatigue caused by pressure. Typically, these pipes are delivered in normalized or tempered conditions, ensuring they remain stable under high-temperature service. They also provide excellent weldability and maintain consistent dimensional accuracy, making them suitable for complex pressure applications.

Carbon Steel EN10216-2 Pipe Specification

Standard	:	EN 102ie-2
EN 10216 Steel Pipe Materials	:	P195GH, P235GH, P265GH
EN 10216 Steel Pipe Outside Diameter	:	10.2mm – 711mm
EN 10216 Steel Pipe Wall Thickness	:	1.6mm – 100mm
EN 10216 Steel Pipe Delivery Conditon	:	Normalized
EN 10216 MOQ	:	2 Tons per size
EN 10216 Pipe Shippment	:	20’GP/40’GP/40’HQ FCL or LCL
EN 10216 Pipe Delivery	:	Depends on the stock availability and actual order quantities.

Carbon Steel EN10216-2 Chemical Composition

teel grades	CHEMICAL COMPOSITION (LADLE ANALYSIS)
teel grades	C% max	Si% max	Mn% max	P% max	S% max	Cr% max	Mo% max	Ni% max	Al.cał% min	Cu% max	Nb% max	Ti% max	V% max	Cr+ Cu+ Mo+ Ni% MAX
EN P195GH	0,13	0,35	0,70	0,025	0,020	0,30	0,08	0,30	>\= 0,020	0,30	0,010	0,040	0,02	0,70
EN P235GH	0,16	0,35	1,20	0,025	0,020	0,30	0,08	0,30	>\= 0,020	0,30	0,010	0,040	0,02	0,70
EN P265GH	0,20	0,40	1,40	0,025	0,020	0,30	0,08	0,30	>\= 0,020	0,30	0,010	0,040	0,02	0,70
16Mo3	0,12- 0,20	0,35	0,40- 0,70	0,025	0,020	0,30	0,25- 0,35	0,30	>\= 0,020	0,30	–	–	–	–
14MoV6-3	0,10- 0,15	0,15- 0,35	0,40- 0,70	0,025	0,020	0,30- 0,60	0,50- 0,70	0,30	>\= 0,020	0,30	–	0,22-0,28	–	–
13CrMo4-5	0,15	0,50- 1,00	0,30- 0,60	0,025	0,020	1,00- 1,50	0,45- 0,65	0,30	>\= 0,020	0,30	–	–	–	–
10CrMo9-10	0,10- 0,17	0,35	0,40- 0,70	0,025	0,020	0,70- 1,15	0,40- 0,60	0,30	>\= 0,020	0,30	–	–	–	–

Carbon Steel EN10216-2 Pipe Mechanical properties

Mechanical properties
Pipe types	Steel grades	Mechanical properties during tensile testing in room temperature							Resilience
Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2		Upper yield limit or yield strength Re or R0,2 for wall thickness of t min				Tensile strength Rm	Elongation A min%		Minimum energy average absorbed KVJ at the temperature of 0°C
		T<\=16	16<T<\=40	40<t<\=60	60<T<\=60	Tensile strength Rm	Elongation A min%		I		T
		MPa	MPa	MPa	MPa	MPa	I	t	20	0	-10	20	0
	EN P195GH	195	–	–	–	320- 440	27	25	–	40	28	–	27
	EN P235GH	235	225	215	–	360- 500	25	23	–	40	28	–	27
	EN P265GH	265	255	245	–	410- 570	23	21	–	40	28	–	27
	16Mo3	280	270	260	–	450- 600	22	20	40	–	–	27	–
	14MoV6-3	320	320	310	–	460- 610	20	18	40	–	–	27	–
	13CrMo4-5	290	290	280	–	440- 590	22	20	40	–	–	27	–
	10CrMo9-10	280	280	270	–	480- 630	22	20	40	–	–	27	–

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

EN10216-2 Carbon Steel Pipe Exporter in USA, DIN 17175 CS EN10216-2 Pipe Price List in Houston , EN 10216-2 Steel Pipes Supplier in Houston, ASTM A312 Carbon Steel EN10216-2 Pipe Exporter in Los Angeles , Carbon Steel EN10216-2 Pipe Exporter in Texas, CS EN10216-2 Pipe Size Chart, ASTM A312 EN 10216-2 CS Pipe Price in California, DIN 17175 EN10216-2 Carbon Steel Pipe Weight Chart, EN 10216-2 Steel Pipes Thickness, CS EN10216-2 Pipe Supplier in Texas,EN 10216-2 Steel Pipes Stockist in Houston

Why Choose Carbon Steel EN10216-2 Pipe from Liam Pipes and Tubes?

Choosing Carbon Steel EN10216-2 Pipe from Liam Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Carbon Steel EN10216-2 Pipe Supplier in Houston , USA

Liam Pipes and Tubes is one of the largest Carbon Steel EN10216-2 Pipe suppliers in Houston , USA, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

ASTM A312 Carbon Steel EN10216-2 Pipe Supplier in Houston , EN 10216-2 Pipe Exporter in Houston, CS EN10216-2 Pipe Manufacturer in Los Angeles , EN 10216-2 Steel Pipes Price List in Texas, DIN 17175 CS EN10216-2 Pipe Distributor in Texas, EN 10216-2 Pipe in California, Carbon Steel EN10216-2 Pipe Supplier in Los Angeles , DIN 17175 EN10216-2 Carbon Steel Pipe Distributor in USA, ASTM A312 EN 10216-2 CS Pipe Sizes in mm

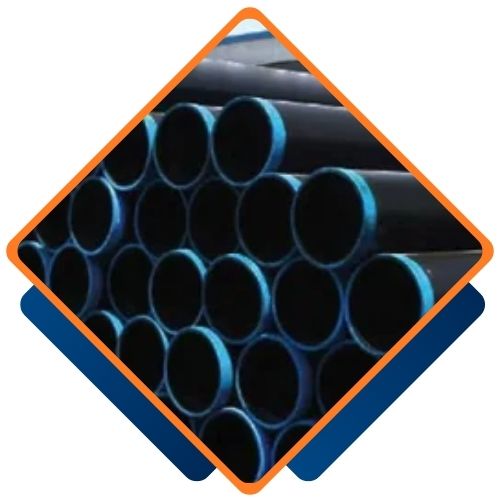

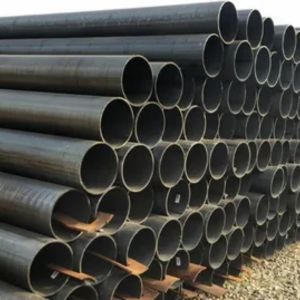

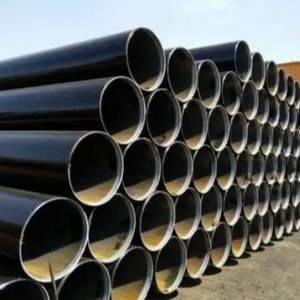

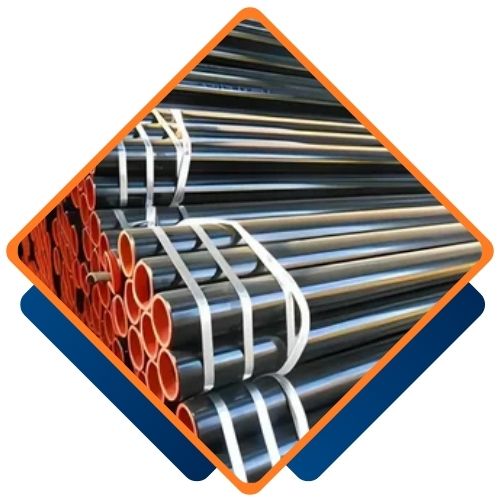

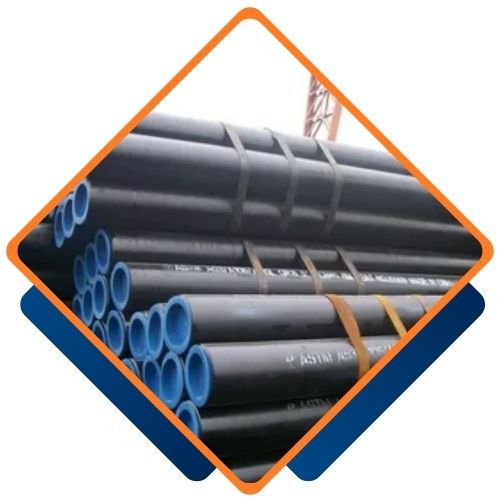

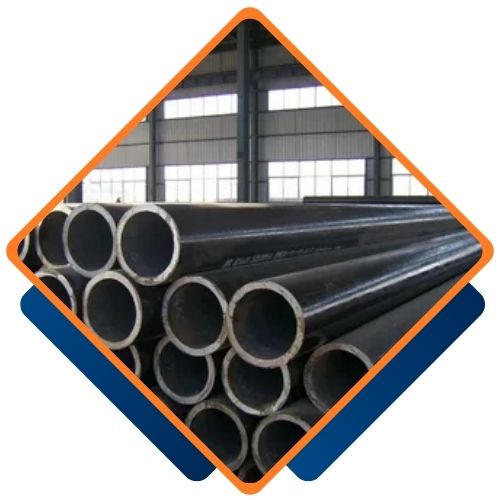

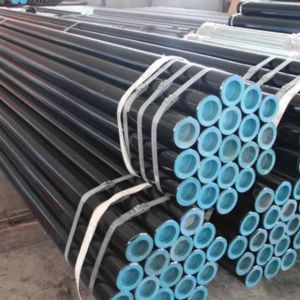

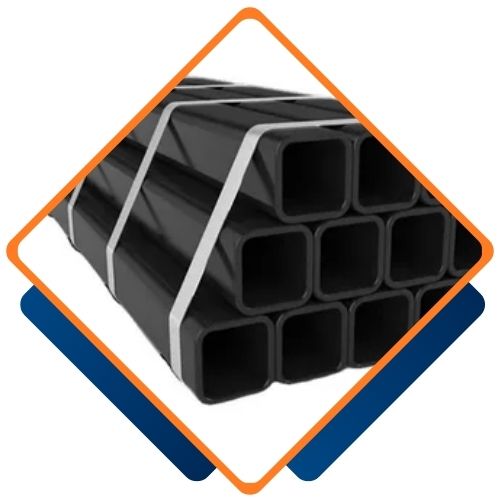

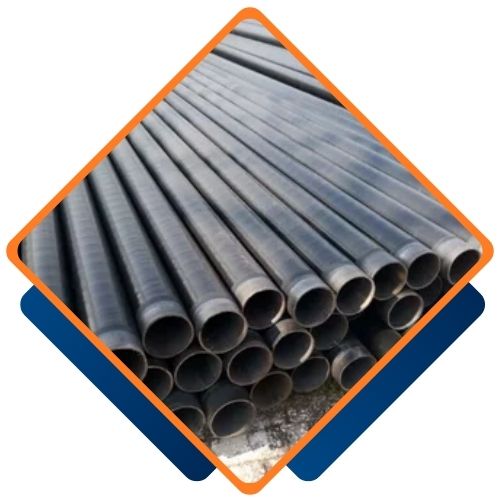

Types of Carbon Steel EN10216-2 Pipe

Are Custom Sizes Available for Carbon Steel EN10216-2 Pipe

Yes, we offer custom sizes for Carbon Steel EN10216-2 Pipe to meet your specific requirements. Our team at Liam Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@liampipes.us.

Carbon Steel EN10216-2 Pipe Exporter in USA, EN10216-2 Carbon Steel Pipe Price List in Houston , EN 10216-2 CS Pipe Supplier in Houston, CS EN10216-2 Pipe Exporter in Los Angeles , EN 10216-2 Steel Pipes Exporter in Texas, EN 10216-2 Pipe Size Chart, DIN 17175 EN10216-2 Carbon Steel Pipe Price in California, ASTM A312 EN 10216-2 CS Pipe Weight Chart, CS EN10216-2 Pipe Thickness, ASTM A312 Carbon Steel EN10216-2 Pipe Supplier in Texas, EN 10216-2 CS Pipe Stockist in Houston

Carbon Steel EN 10216-2 Pipes are extensively utilized in high-pressure steam lines, components of power plants, heat exchangers, boilers, and industrial process piping. Their capability to perform under elevated temperatures makes them perfect for thermal power stations, oil refineries, and chemical plants. Additionally, these pipes are employed in gas turbines and heavy-duty manufacturing systems that demand long-term stability and resistance to thermal stress. With their remarkable strength, heat resistance, and extended service life, EN 10216-2 pipes offer a dependable and efficient solution for transporting high-temperature fluids and gases in critical applications.
