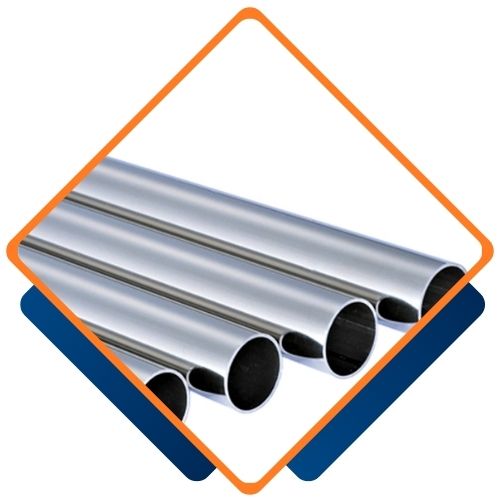

Hastelloy C22 pipes are commonly utilized in industries that require superior corrosion resistance and durability in aggressive environment. Their corrosion resistance ratings are ideal for chemical processing, power generation, and marine applications because of their excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Likewise, Hastelloy C22 is employed in pharmaceutical, aerospace, and food processing applications because they are recognized for the ability to handle high temperature, in harsh chemicals, and corrosive environments. Hastelloy C22 pipes have extensive versatility and performance capabilities that are applicable to high-temperature and highly corrosive environments.
Hastelloy C22 pipes are largely comprised of nickel (approximately 56%), chromium (22-24%), and molybdenum (13-17%) supplemented by iron, tungsten, and cobalt which be used as additive elements to increase strength and oxidizing resistance. The mechanical properties include yield strength around 30,000 psi, ultimate tensile strength around 75,000 psi, and 40% minimum elongation. Hastelloy C22 pipe offers exceptional corrosion resistance especially in acidic and aggressive chemical environments. For these reasons, Hastelloy C22 is often specified for chemical processing aspects and for marine applications. Hastelloy C22 also has high strength, good weldability and formability.
| Specifications | ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
| Dimensions | ASME, ASTM, and API |
| Size | 15″NB upto 150″NB IN |
| Specialized in | Sizes in Large Diameter |
| Schedule | Schedule 5, 10, 40, STD, 80, 160 |

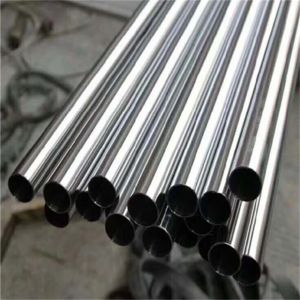

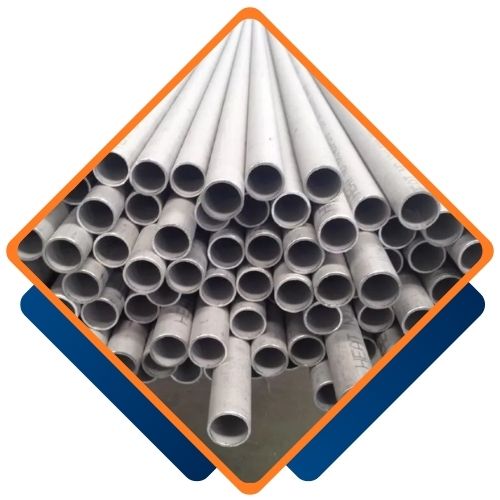

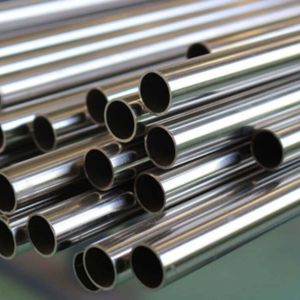

| Type | ERW / Seamless / Welded / LSAW Pipes / Fabricated |
| Form | Hydraulic, Round, Etc |
| Length | Double Random, Single Random, & Cut Length. |
| End | Beveled End, Plain End, Treaded |
| Hastelloy C22 | Fe | Ni | P | C | Co | Mo | Si | Mn | S | Cr |
| 4 – 7 | Balance | 0.04 max | 0.01 max | 2.5 max | 15 – 17 | 0.08 max | 1.0 max | 0.03 max | 14.5 – 16.5 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.89 g/cm3 | Psi – 52,000 , MPa – 355 | 1370 °C (2500 °F) | 40 % | Psi – 1,15,000 , MPa – 790 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Hastelloy C22 Pipes from Liam Pipes and Tubes for their exceptional corrosion resistance, high strength, and durability. These pipes are ideal for marine, chemical, and offshore applications, offering long-lasting performance and superior reliability.
Liam Pipes and Tubes is the largest supplier of Hastelloy C22 Pipes in Houston , USA, providing top-quality, corrosion-resistant pipes and tubing ideal for marine, industrial, and chemical applications, with reliable delivery and excellent customer service.
| STANDARD | WERKSTOFF NR. | UNS | OR | EN | GOST | JIS |
| Hastelloy C22 | 2.4819 | N10276 | ЭП760 | NiMo16Cr15W | ХН65МВУ | NW 0276 |
Yes, custom sizes are available for Hastelloy C22 Pipes to meet specific project requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@liampipes.us.
| ASTM B622 Hastelloy C22 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Hastelloy C22 pipes are commonly used in industries that require high corrosion resistance and durability in aggressive environments. Hastelloy C22 pipes are perfect for chemical processing, power generation, and marine environments for its excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Hastelloy C22 is also used in many pharmaceutical, aerospace, and food processing applications, and it is important material when subjected to harsh chemicals, severe heat, and corrosive environments. Hastelloy C22 can be used in a wide variety of aggressive environments and high temperature conditions.
